nVent Hoffman A10R86HCR Hinge-Cover Drip-Shield Enclosure 10 Inch x 8 Inch x 6 Inch, Steel Gray
- MPN: A10R86HCR
- UPC: 783510387402
- PPN: HOF-A10R86HCR
- UNSPSC: 39121324
CAD
$172.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

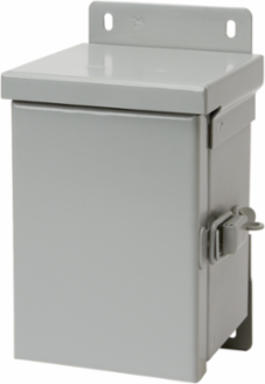

Small Drip-Shield Hinged-Cvr Type 3R protects wiring and electrical components in outdoor applications. This Hinge-Cover Small Drip-Shield Type 3R, A10R86HCR item measures 10.00x8.00x6.00 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Plated steel hinge has stainless steel pin
- Weldnuts provided for mounting optional panels
- Provisions for padlocking on zinc-plated draw-pull catch
- Knockouts on bottom of enclosure
- No gasketing
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 203
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Thickness (T)
- 1.52
- Mounting (G)
- 279
- IP Rating
- IP32
- Material
- Steel
- NEMA Rating
- 3R Weather-resistant, except dust
Height (H)254
Depth (D)152
FinishPowder Coated
Color CodeANSI 61
Overall Dimensions (L x W)305 x 224
Knockout PatternF-G-H-I
Weight9
Size10.00x8.00x6.00 in
