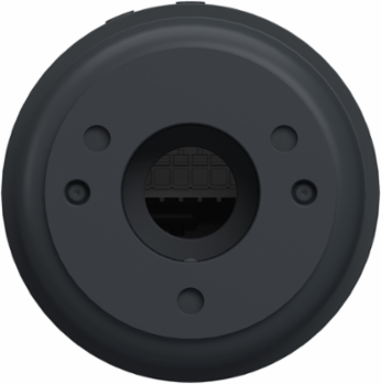

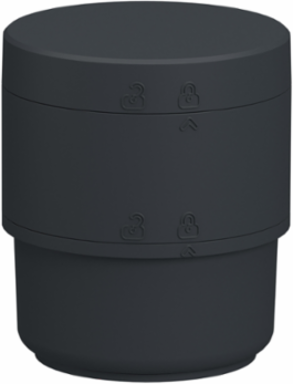

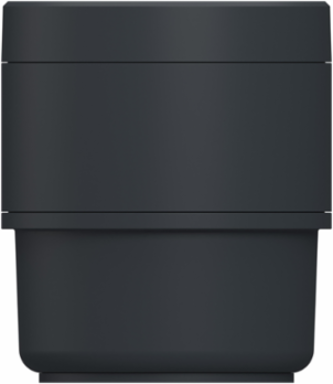

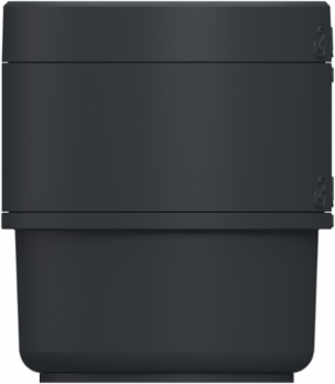

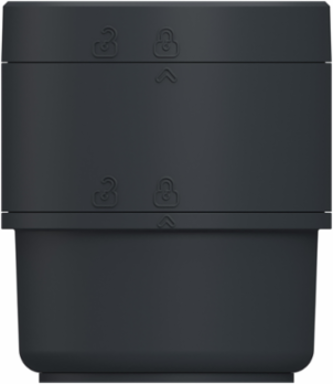

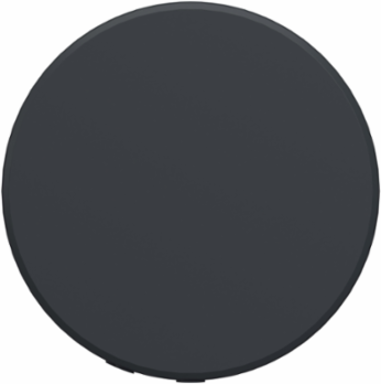

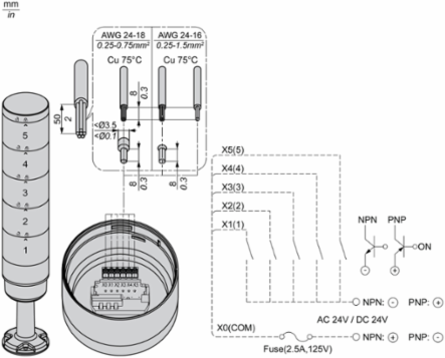

Schneider Electric XVB7C21B Base Module, Harmony XVB7 Modular Tower Light, Ø70mm, 24V AC/DC base with adapter and cover, Grey
- MPN: XVB7C21B
- PPN: SCH-XVB7C21B
CAD
$72.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Base Module, Harmony XVB7 Modular Tower Light, Ø70mm, 24V AC/DC base with adapter and cover, Grey
Features

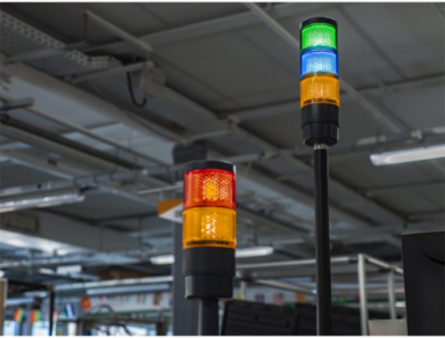

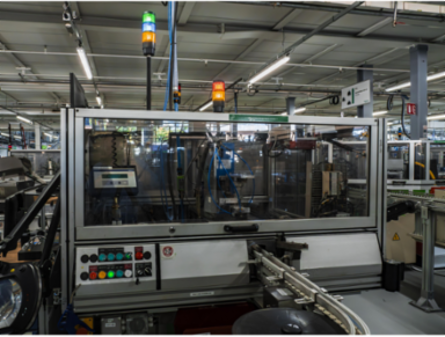

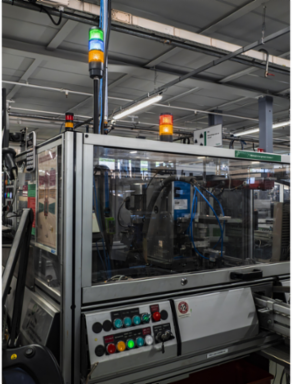

- As the foundational component of the Harmony XVB7 series, this 70mm base module supports a highly customizable stack of up to 5 modules (typically 4 light lenses and 1 audible sounder). This modularity allows industrial engineers to build a tailored "traffic light" signaling system that perfectly matches the specific status-reporting needs of complex machinery or automated production lines.
- Constructed from high-impact, UV-stabilized polycarbonate, this base is engineered to maintain a rigorous IP66 and NEMA Type 4X rating when fully assembled. It provides an airtight, water-resistant seal that protects internal electronics from heavy rain, splashing liquids, and fine industrial particulates, making it the ideal choice for food processing plants and harsh manufacturing environments.
- Operating on a flexible 24V AC/DC power input, this base module integrates seamlessly with standard industrial programmable logic controllers (PLCs) and low-voltage power supplies. By utilizing a common voltage standard, you reduce inventory complexity and ensure a safe, low-risk electrical installation for technicians performing routine maintenance or machine upgrades.
- Equipped with advanced spring clamp terminals, this base allows for tool-free, vibration-resistant wiring that significantly speeds up the commissioning process. The "push 'n stay" mechanism ensures a permanent, high-integrity connection that won't vibrate loose in high-motion environments, eliminating the need for periodic re-tightening and reducing overall system downtime.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
Communications & Management Attributes
- Communication Port Protocol
- -, -
Physical Attributes
- Housing Color
- dark grey, dark grey
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
Important Information Attributes
- Housing Color
- dark grey, dark grey
- Certificate Agency
- cULus, CCC, RCM, UKCA, CE
- Connections - Terminals
- spring clamp terminals (push 'n stay), 6 x 0.25...6 x 1.5 mm² with cable end, spring clamp terminals (push 'n stay), 6 x 0.25...6 x 1.5 mm² without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.15016328377647395
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.8129485118180253
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2025-02-06
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2501029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2447
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Assembly Style
- Up to 5 Modules (4 lens + 1 sound or 5 lens)
- Current Consumption
- 0 mA
- Device Short Name
- XVB7
- Electrical Shock Protection Class
- class II
- Material
- polycarbonate
- Mounting Position
- upright/inverted
- Product Or Component Type
- base module
- Returnability
- Yes
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Germany, DE
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential In %
- 87
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Package Weight(Lbs)
- 144.000 g
- Warranty (In Months)
- 18
Connections Terminals 8 Connections Terminalsspring clamp terminals (push 'n stay)
[Ue] Rated Operational Voltage24 V AC 50/60 Hz, 24 V DC
Carbon Footprint Of The Distribution Phase [A4]0.05256946905972271, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0008371215155039866, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Pre Comm Date2025-02-06
Stocking FlagN
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Cable Entrybottom
Device CompositionBase direct/tube & cover
Electrical Connection24V
Fixing Modedirect or tube fixing
Mounting Diameter70 mm
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XVB7
Shock Resistance30 gn 6 ms) in operation
Sustainable PackagingNo
Vibration Resistance6 gn +/- 0.5 mm 10-500 Hz)in operation
Pep CodeENVPEP2501029EN
Pep Verification Date2025-06-28
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ui] Rated Insulation Voltage50 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531909001
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2.016518386169726
- Environmental Disclosure
- ENVPEP2501029EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2501029EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionUL type 4X/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- base module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC001152
ETIM 9EC001152
Output Attributes
- Output Current
- 2000 mA max
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
