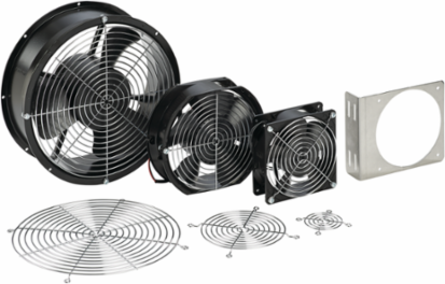

nVent Hoffman A2AXFN24 Compact Axial Fan 24VDC 21.5CFM 2.36 Inch Black Steel
- MPN: A2AXFN24
- UPC: 783510173937
- PPN: HOF-A2AXFN24
- UNSPSC: 40101604
CAD
$127.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Compact Axial Fans provide quiet, reliable cooling in applications where enclosure space is limited. This Compact Axial Fan 10-inch, A10AXFNPG item is rated for 115V 560CFM with Power Cord.
Features
- Maximum operating temperature is 158 F (70 C)
- 4-inch fan is thermally protected and uses permanently lubricated ball bearings
- 6- and 10-inch fans have ball-bearing construction and split-capacitor motors
- Split-capacitor motors are thermally protected to avoid premature failure
- Dynamically balanced impellers molded from polycarbonate material
- One finger guard is furnished (additional finger guards are available)
- All mounting hardware is provided
- 240 and 560 CFM fans have ball bearing construction and split capacitor motors
- Fans have leadwires with ends stripped 1/2-inch (12-mm) or 6-foot (1.8-m) cord with polarized plug for power connections
- Fan bracket and additional finger guards must be purchased separately
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 24
- Width (W)
- 117
- Max Current
- 0.09
- Finish
- Powder Coated
- Color Code
- RAL 9005
- Weight
- 0.3
- Blade Size
- 2.36-inch diameter
- Voltage Rating
- 24 VDC
- Fan Speed
- 4550 rpm
- Motor Type
- AC Motor
Airflow36
Height (H)60
Depth (D)25
MaterialMild Steel
ColorJet Black
Fan Diameter2.36
Size24vdc in
Flow Rate21.5 CFM max
Amperage Rating.09 A
Sound Pressure Level65 dBA
