Nvent Hoffman

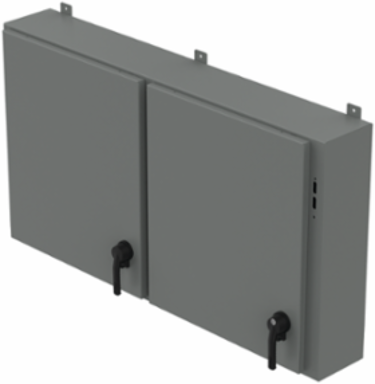

Nvent Hoffman A30X2E5408 Low-Profile 2-Door Steel Disconnect Enclosure 30 Inch x 54-1/2 Inch x 8 Inch

Low-Profile 2-Door Steel Disconnect Enclosure 30 Inch x 54-1/2 Inch x 8 Inch
  • MPN: A30X2E5408
  • UPC: 783510127084
  • PPN: HOF-A30X2E5408
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2689.08/ EA

Description

Heavy duty multi-bay enclosure with a lower profile to maintain line of sight in factory. This Low-Profile 2-Door Disconnect Type 12, A30X2E5408 item measures 30.00x54.50x8.00 inches with material of Steel colored Gray.

Features

  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough excludes liquids and contaminants
  • Heavy duty lifting eyes anchor into reinforced top on larger models
  • Removable centerposts for easy panel installation
  • Concealed, easy-to-remove hinges
  • Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
  • Oil-resistant gasket
  • Removable .127-in. thick steel panels mount on collar studs
  • Master door is far right-hand door on all enclosures
  • Defeater on master door requires a screwdriver to open
  • Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
  • Enclosures with three to five doors have three stiffeners on rear of body

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
1,384
Protection Rating
NEMA Type 12
Color Code
ANSI 61
Body Stiffener
0
IP Rating
IP55
Weight
237
Size
30.00x54.50x8.00 in
Height (H)762
Depth (D)203
FinishPowder Coated
Thickness (T)2.48972972972973
Panel Quantity1
NEMA Rating12 Indoor, dust-resistant
MaterialSteel
ColorGray
