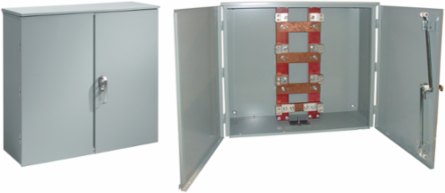

nVent Hoffman A800HCT1R CT Cabinet 400-800 Amp Type 3R, 35.77x35.8x11.00, Gray, Steel

CT Cabinet 400-800 Amp Type 3R, 35.77x35.8x11.00, Gray, Steel
  • MPN: A800HCT1R
  • UPC: 783510187019
  • PPN: HOF-A800HCT1R
  • UNSPSC: 39121319

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3834.92/ EA

Description

CT Cabinet 400-800A Type 3R provides factory-installed wire buss for window-type current transformers. This CT Cabinet 400-800 Amp Type 3R, A800HCT1R item measures 35.77x35.8x11.00 inches with a material of Steel colored Gray.

Features

  • Overlapping double-door model with 3-point latch and lift-off hinges
  • Door stop provision included
  • Includes padlock provisions in handle
  • Mild steel hinges
  • Use with window-type current transformer
  • Drip-shield top and seam-free sides, front and back
  • Three removable copper buss bars
  • Buss bar cross section 3.00 in. x .25 in. (76 mm x 6 mm)
  • Neutral bar
  • Aluminum mechanical lugs dual rated (Cu/Al), two conductor
  • Maximum conductor size 600 kcmil
  • Insulating bar mounting bracket, 12-gauge painted steel
  • Mounting holes on back of enclosure
  • No gasketing or knockouts
  • No gasketing or knockouts Ground stud provided
  • Enclosures are finished with paint over plated surfaces

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
914
Protection Rating
NEMA Type 3R
Color Code
ANSI 61
Door Thickness
1.9
Door Type
Double Door, Hinged
Size
35.77x35.8x11.00 in
NEMA Rating
3R Weather-resistant, except dust
Height (H)914
Depth (D)279
FinishGalvanized
Body Thickness2.66
Weight171
MaterialSteel
ColorGray
