nVent Hoffman A42HS3112LP Disconnect Enclosure Type 4, 42 Inch x 31 Inch x 12 Inch, Steel, Gray
- MPN: A42HS3112LP
- UPC: 783510201609
- PPN: HOF-A42HS3112LP
- UNSPSC: 39121324
CAD
$2336.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

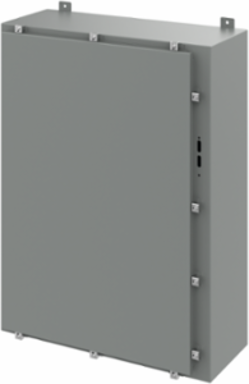

Disconnect Enclosures provide extra level of visual ON/OFF indication clamped for additional security. This Disconnect Enclosure with Clamps Type 4, A42HS3112LP item measures 42.00x31x12.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Removable door with continuous hinge
- Type 4 rated door gasket
- Collar studs for mounting optional panels
- Holes in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door
- Adjustable door interlock bracket fastened to door) and instructions for installing disconnects
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 797
- Protection Rating
- NEMA Type 4
- Color Code
- ANSI 61
- Clamp Quantity
- 10
- IP Rating
- IP66
- Material
- Steel
- Color
- Gray
Height (H)1,067
Depth (D)305
FinishPowder Coated
Thickness (T)1.9
Data Pocket Size (D x E)152 x 152
Weight75
Size42.00x31.38x12.00 in
NEMA Rating4 Watertight
