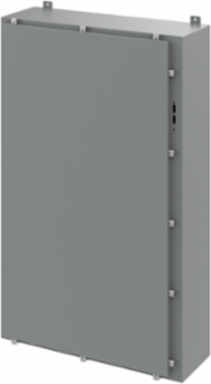

Nvent Hoffman A60HS3712LP Disconnect Enclosure Type 4, 60 x 37 x 12 Inch, Gray Steel, NEMA 4 Rated
Nvent Hoffman A60HS3712LP Disconnect Enclosure Type 4, 60 x 37 x 12 Inch, Gray Steel, NEMA 4 Rated
- MPN: A60HS3712LP
- UPC: 783510201906
- PPN: HOF-A60HS3712LP
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3300.77/ EA
Description
Disconnect Enclosures provide extra level of visual ON/OFF indication clamped for additional security. This Disconnect Enclosure with Clamps Type 4, A60HS3712LP item measures 60.00x37x12.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Removable door with continuous hinge
- Type 4 rated door gasket
- Collar studs for mounting optional panels
- Holes in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door
- Adjustable door interlock bracket fastened to door) and instructions for installing disconnects
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 949
- Protection Rating
- NEMA Type 4
- Color Code
- ANSI 61
- Clamp Quantity
- 11
- IP Rating
- IP66
- Material
- Steel
- Color
- Gray
Height (H)1,524
Depth (D)305
FinishPowder Coated
Thickness (T)1.9
Data Pocket Size (D x E)305 x 305
Weight125
Size60.00x37.38x12.00 in
NEMA Rating4 Watertight
Downloads
