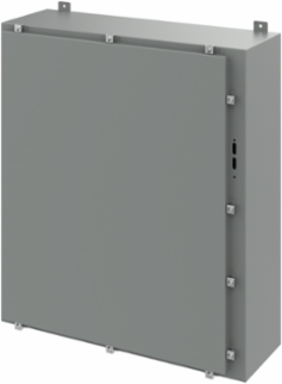

nVent Hoffman A42HS3712LP Disconnect Enclosure Type 4, 42 Inch x 37 Inch x 12 Inch, Gray Steel, 87 lbs
- MPN: A42HS3712LP
- UPC: 783510201708
- PPN: HOF-A42HS3712LP
- UNSPSC: 39121324
CAD
$2601.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Disconnect Enclosures provide extra level of visual ON/OFF indication clamped for additional security. This Disconnect Enclosure with Clamps Type 4, A42HS3712LP item measures 42.00x37x12.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Removable door with continuous hinge
- Type 4 rated door gasket
- Collar studs for mounting optional panels
- Holes in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door
- Adjustable door interlock bracket fastened to door) and instructions for installing disconnects
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 949 |
| Protection Rating | NEMA Type 4 |
| Color Code | ANSI 61 |
| Clamp Quantity | 10 |
| IP Rating | IP66 |
| Material | Steel |
| Color | Gray |
| Height (H) | 1,067 |
|---|---|
| Depth (D) | 305 |
| Finish | Powder Coated |
| Thickness (T) | 1.9 |
| Data Pocket Size (D x E) | 305 x 305 |
| Weight | 87 |
| Size | 42.00x37.38x12.00 in |
| NEMA Rating | 4 Watertight |
