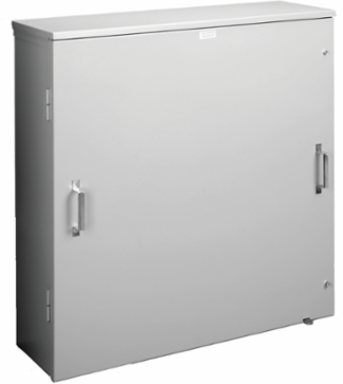

nVent Hoffman A484814HCT Current Transformer Hinged Cover 48 Inch x 48 Inch x 14 Inch, Gray Steel
- MPN: A484814HCT
- UPC: 783510153069
- PPN: HOF-A484814HCT
- UNSPSC: 39121319
CAD
$3181.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
CT Cabinet Hinged-Cover Type 3R provides protection and security for instrument current transformers. This Current Transformer Hinged Cover, A484814HCT item measures 48.00x48.00x14.00 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front and back
- Mounting holes on back of enclosure
- Mounting studs are provided on the enclosure body
- Cover is removable in the open position
- Door handles provided
- Provisions for padlocking
- No gasketing or knockouts
- Ground lug
- Mounting provisions for optional door stop
- Enclosures are finished with paint over plated surfaces
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,219
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Body Thickness
- 2.66
- Gauge
- 12
- Weight
- 213
- Size
- 48.00x48.00x14.00 in
Height (H)1,219
Depth (D)356
FinishGalvanized
Color CodeANSI 61
Door Thickness1.9
IP RatingIP32
MaterialSteel
NEMA Rating3R Weather-resistant, except dust
