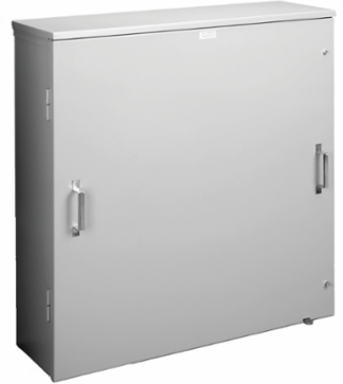

nVent Hoffman A483011HCT Current Transformer Hinged Cover, 48 Inch x 30 Inch x 11 Inch, Steel, Gray, NEMA 3R
- MPN: A483011HCT
- UPC: 783510427290
- PPN: HOF-A483011HCT
- UNSPSC: 39121319
CAD
$2329.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
CT Cabinet Hinged-Cover Type 3R provides protection and security for instrument current transformers. This Current Transformer Hinged Cover, A483011HCT item measures 48.00x30.00x11.00 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front and back
- Mounting holes on back of enclosure
- Mounting studs are provided on the enclosure body
- Cover is removable in the open position
- Door handles provided
- Provisions for padlocking
- No gasketing or knockouts
- Ground lug
- Mounting provisions for optional door stop
- Enclosures are finished with paint over plated surfaces
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 762
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Body Thickness
- 2.66
- Gauge
- 12
- IP Rating
- IP32
- Material
- Steel
Height (H)1,219
Depth (D)279
FinishGalvanized
Color CodeANSI 61
Door Thickness1.9
NEMA Rating3R Weather-resistant, except dust
Weight136
Size48.00x30.00x11.00 in
