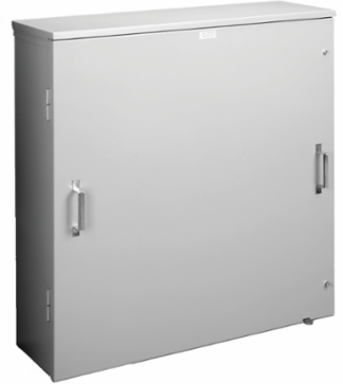

nVent Hoffman A483611HCT Current Transformer Hinged Cover 48 Inch x 36 Inch x 11 Inch, Gray Steel, NEMA 3R
- MPN: A483611HCT
- UPC: 783510427498
- PPN: HOF-A483611HCT
- UNSPSC: 39121319
CAD
$2429.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CT Cabinet Hinged-Cover Type 3R provides protection and security for instrument current transformers. This Current Transformer Hinged Cover, A483611HCT item measures 48.00x36.00x11.00 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front and back
- Mounting holes on back of enclosure
- Mounting studs are provided on the enclosure body
- Cover is removable in the open position
- Door handles provided
- Provisions for padlocking
- No gasketing or knockouts
- Ground lug
- Mounting provisions for optional door stop
- Enclosures are finished with paint over plated surfaces
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 914 |
| Protection Rating | NEMA Type 3R |
| Color | Gray |
| Body Thickness | 2.66 |
| Gauge | 12 |
| Weight | 155 |
| Size | 48.00x36.00x11.00 in |
| Height (H) | 1,219 |
|---|---|
| Depth (D) | 279 |
| Finish | Galvanized |
| Color Code | ANSI 61 |
| Door Thickness | 1.9 |
| IP Rating | IP32 |
| Material | Steel |
| NEMA Rating | 3R Weather-resistant, except dust |
