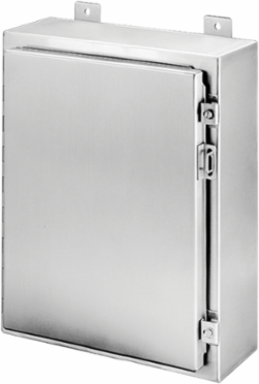

nVent Hoffman A48H3612SSLP Wallmount Hinged with NEMA Clamps Type 4X, 48x36x12, Brushed, SS304
- MPN: A48H3612SSLP
- UPC: 783510239008
- PPN: HOF-A48H3612SSLP
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
For use in indoor and outdoor corrosive environments that require a water-tight seal. This Wallmount Hinged with NEMA Clamps Type 4X, A48H3612SSLP item measures 48x36x12 in. with a material of SS304, Brushed.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Stainless steel door clamp assembly
- Hasp and staple for padlocking
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Protection Rating
- NEMA Type 12
- Width (W)
- 914 mm
- Depth (D)
- 305 mm
- Material
- Stainless Steel 304
- Thickness (T)
- 1.98 mm
- Data Pocket
- Large, High-impact thermoplastic
- Gasket Type
- Seamless foam-in-place gasket
- Door Removal
- Stainless steel continuous hinge pin
- Bonding Provision
- On door; grounding stud on body
- Mounting Studs
- Collar studs for optional panels
IP RatingIP66
Size48.00x36.00x12.00 in
Height (H)1,219 mm
Weight134 lb
FinishBrushed #4
Clamp Quantity8
Door ClampStainless steel
ConstructionSeams continuously welded and ground smooth
LockingHasp and staple for padlocking
Door LipRolled lip around three sides
BABABABA Compliant
