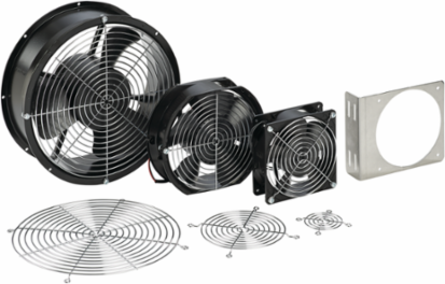

nVent Hoffman A6AXFNGQ Compact 6 Inch Axial Fan, 102 CFM, 115V, AC Motor, Jet Black
- MPN: A6AXFNGQ
- UPC: 783510138530
- PPN: HOF-A6AXFNGQ
- UNSPSC: 40101604
CAD
$450.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Compact Axial Fans provide quiet, reliable cooling in applications where enclosure space is limited. This Compact Axial Fan 6-inch, A6AXFN24 item is rated for 24V 280CFM with Lead Wires.
Features
- Maximum operating temperature is 158 F (70 C)
- 4-inch fan is thermally protected and uses permanently lubricated ball bearings
- 6- and 10-inch fans have ball-bearing construction and split-capacitor motors
- Split-capacitor motors are thermally protected to avoid premature failure
- Dynamically balanced impellers molded from polycarbonate material
- One finger guard is furnished (additional finger guards are available)
- All mounting hardware is provided
- 240 and 560 CFM fans have ball bearing construction and split capacitor motors
- Fans have leadwires with ends stripped 1/2-inch (12-mm) or 6-foot (1.8-m) cord with polarized plug for power connections
- Fan bracket and additional finger guards must be purchased separately
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 115
- Width (W)
- 149
- Max Current
- 0.19
- Finish
- Powder Coated
- Color Code
- RAL 9005
- Weight
- 2.5
- Blade Size
- 6.77-inch diameter
- Voltage Rating
- 100 - 120 VAC
- Fan Speed
- 1650 RPM at 60 Hz
- Motor Type
- AC Motor
Airflow173
Height (H)149
Depth (D)57
MaterialMild Steel
ColorJet Black
Fan Diameter6.77
Size115v 50/60Hz in
Flow Rate85/102 CFM max
Amperage Rating.16/.19 A
Sound Pressure Level38 dBA at 60 Hz
