nVent Hoffman

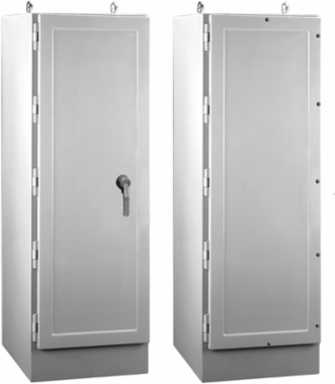

nVent Hoffman A722525FGFS Fiberglass Free-Stand Enclosure, 72x25x24.5 Inch, IP66, NEMA 4X

Fiberglass Free-Stand Enclosure, 72x25x24.5 Inch, IP66, NEMA 4X
  • MPN: A722525FGFS
  • UPC: 783510251000
  • PPN: HOF-A722525FGFS
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Single Door Free-standing Fiberglass enclosure is for corrosive environments with larger capacity. This Fiberglass Free-Stand Type 4X, A722525FGFS item measures 72x25x24.5 inches with a material of Fiberglass type Screw Cover.

Features

  • Fiberglass-reinforced polyester material has excellent temperature and chemical resistance and exhibits outstanding physical properties
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Models have either a 3-point latching system with handle or stainless steel captivated door screws
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Painted steel top, bottom and side internal reinforcements standard; stainless steel corner reinforcements optional
  • Heavy-duty Type 316 stainless steel lifting eyes
  • Accessory mounting channels attached horizontally to interior body sides at top, bottom and center; painted mounting channels standard; stainless steel optional
  • Panels and rack-mounting angles can be mounted anywhere along corner channels; panels can be mounted on sides or back
  • Hinges are corrosion-resistant fiberglass with Type 316 stainless steel hinge pins
  • Large, high-impact thermoplastic data pocket (12.00 x 12.00 in. or 305 x 305 mm) is
  • Molded-in angular sealing flange directs water away from gasket area
  • Type 316 stainless steel PowerGlide Handle on handle versions
  • Material is halogen free
  • Optional mild-steel panels are painted white
  • Optional conductive panels are unpainted

Specifications

Specifications

BABA
Yes, BABA Compliant
Width (W)
635
Protection Rating
NEMA Type 4
Color
Gray
IP Rating
IP66
Material
Fiberglass
NEMA Rating
4X Watertight, corrosion-resistant
Height (H)1,829
Depth (D)622
FinishSmooth Gloss
Thickness (T)5.6
Weight195
Size72.00x25.00x24.50 in
