nVent Hoffman A722525FGFS3PT Fiberglass Free-Stand Enclosure, 72 Inch x 25 Inch x 24.5 Inch, NEMA 4X, IP66
- MPN: A722525FGFS3PT
- UPC: 783510468897
- PPN: HOF-A722525FGFS3PT
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

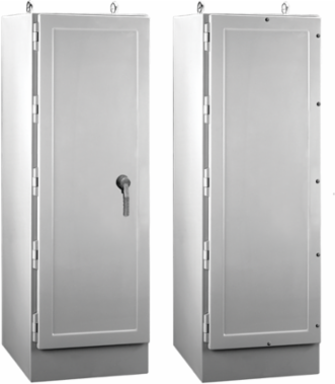

Single Door Free-standing Fiberglass enclosure is for corrosive environments with larger capacity. This Fiberglass Free-Stand Type 4X, A722525FGFS3PT item measures 72x25x24.5 inches with a material of Fiberglass type 3-Pt Latch.
Features
- Fiberglass-reinforced polyester material has excellent temperature and chemical resistance and exhibits outstanding physical properties
- Fiberglass material is easily punched, drilled, filed or sawed
- Models have either a 3-point latching system with handle or stainless steel captivated door screws
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Painted steel top, bottom and side internal reinforcements standard; stainless steel corner reinforcements optional
- Heavy-duty Type 316 stainless steel lifting eyes
- Accessory mounting channels attached horizontally to interior body sides at top, bottom and center; painted mounting channels standard; stainless steel optional
- Panels and rack-mounting angles can be mounted anywhere along corner channels; panels can be mounted on sides or back
- Hinges are corrosion-resistant fiberglass with Type 316 stainless steel hinge pins
- Large, high-impact thermoplastic data pocket (12.00 x 12.00 in. or 305 x 305 mm) is
- Molded-in angular sealing flange directs water away from gasket area
- Type 316 stainless steel PowerGlide Handle on handle versions
- Material is halogen free
- Optional mild-steel panels are painted white
- Optional conductive panels are unpainted
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 635
- Protection Rating
- NEMA Type 4
- Color
- Gray
- IP Rating
- IP66
- Material
- Fiberglass
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)1,829
Depth (D)622
FinishSmooth Gloss
Thickness (T)5.6
Weight215
Size72.00x25.00x24.50 in
