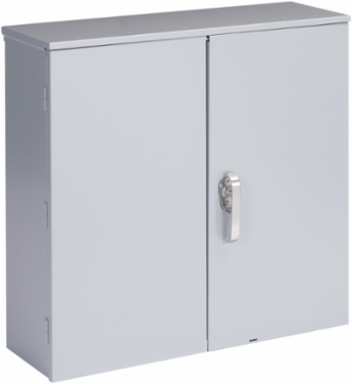

nVent Hoffman A800NECT 3-Phase CT Cabinet Type 3R 800-1200 Amp Steel Gray, 914W x 914H x 305D
- MPN: A800NECT
- UPC: 783510149239
- PPN: HOF-A800NECT
- UNSPSC: 39121319
CAD
$2669.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CT Cabinet 3Ph 400-1200A with Lugs Type 3R used indoor outdoor for 3-Phase service applications. This CT Cabinet with Lugs Type 3R, A800NECT item rated 3-Phase 800-1200 Amp with a material of Steel colored Gray.
Features
- Double door with 3-point latch includes padlock feature
- Lift-off hinges for removable doors
- Mechanical lugs provided for three-phase line-load connections plus neutral
- Ground lug
- Catalog number A1200NECT includes panel-mounting provisions for voltage transformer (VT)
- Embossed mounting holes
- No gasketing or knockouts
- Enclosures are finished with paint over plated surfaces
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 914 |
| Protection Rating | NEMA Type 3R |
| Color Code | ANSI 61 |
| Door Thickness | 1.9 |
| IP Rating | IP32 |
| Material | Steel |
| NEMA Rating | 3R Weather-resistant, except dust |
| Height (H) | 914 |
|---|---|
| Depth (D) | 305 |
| Finish | Galvanized |
| Body Thickness | 14 |
| Mechanical Lug Capacity | Each Phase (3) 750MCM-1/0 |
| Weight | 149 |
| Color | Gray |
