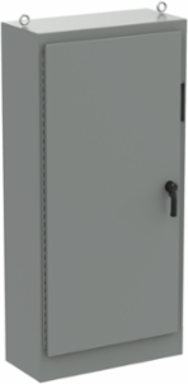

nVent Hoffman A84XM4018FTCLP4 Free-Stand Disconnect with QR Hinge Type 4, 84.12x40.25x18.12, Gray, Steel
nVent Hoffman A84XM4018FTCLP4 Free-Stand Disconnect with QR Hinge Type 4, 84.12x40.25x18.12, Gray, Steel
- MPN: A84XM4018FTCLP4
- UPC: 783510278076
- PPN: HOF-A84XM4018FTCLP4
- UNSPSC: 39121324
Spec sheet
Loading compare button...
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Features
- Quick-release continuous hinge
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Removable centerposts permit easy panel installation
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Ends of latch rods have rollers for easier door closing
- Panel supports
- Data pocket is high-impact thermoplastic
- Oil-resistant gasket
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Mechanical interlock activated by primary door prevents secondary doors from being opened first; doors can be closed in any order
- Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
- Models do not include panels. Painted or conductive panels sold separately.
- Includes door hardware
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,022
- Protection Rating
- NEMA Type 4
- Color Code
- ANSI 61
- IP Rating
- IP66
- Weight
- 498
- Size
- 84.12 x 40.25 x 18.12 in
