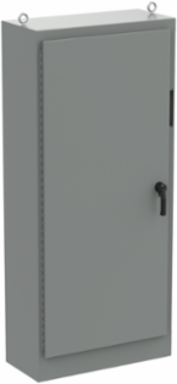

nVent Hoffman A90XM4018FTCLP4 Free-Stand Disconnect Enclosure, 90.12x40.25x18.12 Inch, Steel, NEMA Type 4, IP66
- MPN: A90XM4018FTCLP4
- UPC: 783510278083
- PPN: HOF-A90XM4018FTCLP4
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Free-Stand Type 4 Disconnect Enclosure for heavy industrial use. This Free-Stand Disconnect with QR Hinge Type 4, A90XM4018FTCLP4 item measures 90.12x40.25x18.12 inch with material of Steel color Gray.
Features
- Quick-release continuous hinge
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Removable centerposts permit easy panel installation
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Ends of latch rods have rollers for easier door closing
- Panel supports
- Data pocket is high-impact thermoplastic
- Oil-resistant gasket
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Mechanical interlock activated by primary door prevents secondary doors from being opened first; doors can be closed in any order
- Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
- Models do not include panels. Painted or conductive panels sold separately.
- Includes door hardware
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,022
- Protection Rating
- NEMA Type 4
- Color Code
- ANSI 61
- IP Rating
- IP66
- Weight
- 518
- Size
- 90.12 x 40.25 x 18.12 in
Height (H)2,289
Depth (D)460
FinishPowder Coated
Thickness (T)3.04
NEMA Rating4 Watertight
MaterialSteel
ColorGray
