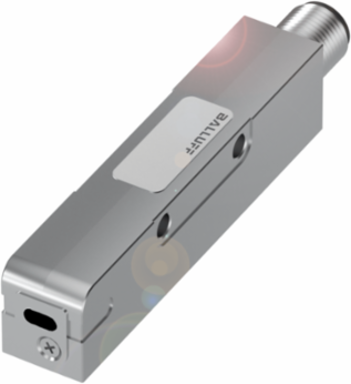

Balluff BML-S1G0-B7ED-M5EQ-D0-S284 Absolute Linear Magnetic Encoder, 48m Measuring Range, 1 m Resolution
- MPN: BML-S1G0-B7ED-M5EQ-D0-S284
- PPN: BAL-BML043W
CAD
$2347.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The absolute linear BML magnetic encoders from Balluff provide for absolute position feedback in any position – ready to use and without a reference run. Even after a loss of operating voltage and restarting the system.
Documentation & Downloads
Specifications
Additional
| Measuring Range | 48 m |
|---|---|
| Read Distance | 0.01-0.8 mm |
| Interface | BiSS-C; Digital A/B (RS422) |
| Repeat Accuracy | B4 1 1m |
| Hysteresis Max | 2 1m |
| Power Consumption | B4 1.5 W |
| Current Consumption Max at 5 V DC | 220 mA |
| Dimension | 16 x 18.5 x 80.3 mm |
| Electrical Connection | Connector, M12x1 Male, 12-pin, axial |
| Surface Protection | Nickel plated, Chrome-plated |
| Ambient Temperature | -20 to 70 B0C |
| Relative Humidity | B4 90%, non-condensing |
| Function Indicator | Green, Yellow, Red LED |
| Series | S1G |
| Resolution | 1 1m |
|---|---|
| Operating Voltage | 4.75-5.25 VDC / 10-28 VDC |
| Traverse Speed Max | 5 m/s |
| Non-linearity | B1 2 1m |
| Switch-on Delay Max | 1000 ms |
| Current Consumption Max at 24 V DC | 70 mA |
| Voltage Proof (GND to housing) | 500 V DC |
| Weight | 78 g |
| Housing Material | Die-cast zinc |
| IP Rating | IP67 |
| Storage Temperature | -25 to 85 B0C |
| Altitude Max | 2000 m |
| Measuring Principle | Absolute measuring system |
| Approval/Conformity | cURus, CE, EAC, WEEE |
