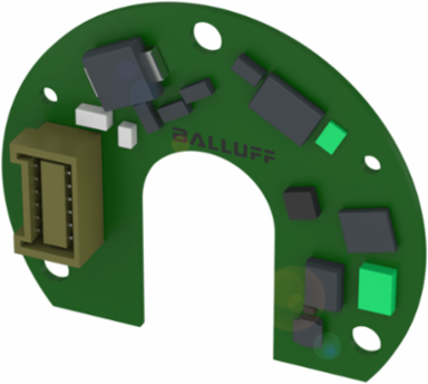

Balluff BML BM1-NG01-BK04-QRF5 Absolute Rotary Magnetic Encoder, 46 x 8 x 38 mm, ≤ 15 Bit Resolution

Absolute Rotary Magnetic Encoder, 46 x 8 x 38 mm, ≤ 15 Bit Resolution
  • MPN: BML BM1-NG01-BK04-QRF5
  • PPN: BAL-BML08NR

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$428.36/ EA

Description

Balluff's absolute linear BML magnetic encoders provide for absolute position feedback in any position – ready to use and without a reference run. Our encoders also work with high accuracy on large diameters, are extremely compact and easy to integrate into motors.

Specifications

Specifications

Dimension
46 x 8 x 38 mm (ODxIDxH)
Interface
BiSS-C;Digital A/B (RS422)
Read distance
0.01-0.5 mm
Ambient temperature
-25-85 °C
ConnectionConnector, JST BM12B-ZPDSS-TF-Male, 12-pin
Resolution≤ 15 Bit
Operating voltage Ub4.75-5.25 VDC
Approval/ConformityRoHS, WEEE
