Klein Tools ET45 AC/DC Voltage Tester, 4.45 Inch Length, IP44 Dust & Water Resistant, CATIII 350V
- MPN: ET45
- UPC: 092644691843
- PPN: KLT-ET45
- UNSPSC: 41113637
CAD
$16.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

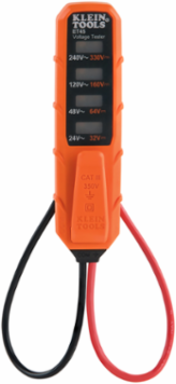

Klein Tools ET45 is an Electronic Voltage Tester. Designed as a simple, easy to use tester to check, verify or troubleshoot common residential electrical wiring in electrical outlets, light fixtures, doorbells and more. This tester does not require batteries, and features a pocket clip for convenient carrying.
Features
- Tests AC voltages from 24V to 240V AC at four useful levels
- Tests DC voltages from 32V to 330V at four levels

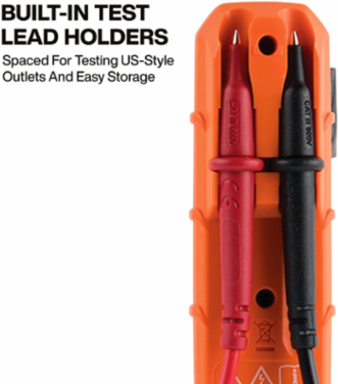

- Built-in test lead holder on back of tester holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
- Test leads can be docked in the holder for convenient storage

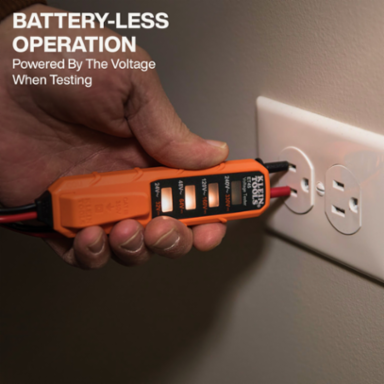

- Batteries not required; tester is powered by the applied voltage
- Built to withstand a 9.8-Foot (3m) drop
- Safety Rating: CATIII, Double insulation
- Ingress protection IP44 dust and water resistant
- Built-in Test Lead Holders on Back of Tester Spaced Correctly to Hold Leads for Testing Tamper-Resistant US-style Outlets
Documentation & Downloads
Specifications
Key Specifications
- Standard
- CATIII 350V, CE
- Type
- Electronic Products
- Interchangeable Leads
- No
- Pollution Degree
- 2
- Application
- Measures AC/DC Voltage
- Display
- Analog LED
- Included

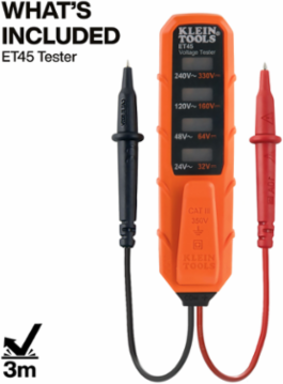

- Tester
- Accuracy
- Typically at >90% of the Indicated Range (Except for 24V AC / 32V DC, >95% of Range)
- Weight (oz)
- 1.8
- Overall Length (Inch)
- 4.45
- Overall Height (cm)
- 3
- Weight (g)
- 51
- Width
- 1.1900 in
- Weight
- 0.1100 lbs
Tests ContinuityNo
Ingress ProtectionIP44
Integral Lead StorageYes
Drop Protection9.8' (3 m)
MaterialPlastic Housing, PCB with Electronic Components

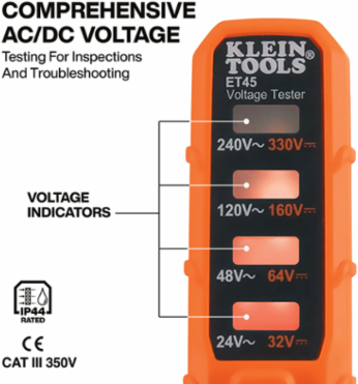

VoltageAC Level Indicators - 24V, 48V, 120V, 240V; DC Level Indicators - 32V, 64V, 160V, 330V
Frequency50/60 Hz
Overall Width (Inch)1.05
Overall Height (Inch)1.19
Overall Width (cm)2.7
Overall Length (cm)11.3
Height1.0500 in
Depth4.4500 in
