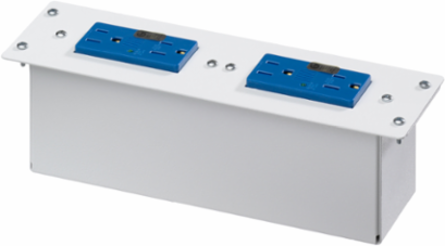

Leviton 47605-DP AC Power Surge Protective Module with 2 Duplex Outlets, 15 Amp, 120 Volt

AC Power Surge Protective Module with 2 Duplex Outlets, 15 Amp, 120 Volt
  • MPN: 47605-DP
  • UPC: 078477118139
  • PPN: LEV-47605-DP

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$249.18/ EA

Description

This AC Dual Power Module with surge suppression provides power to voice, video, audio, and data distribution modules – routers, switches, modems, audio distribution modules, and security modules – mounted inside a Leviton Structured Media® Center enclosure. Equipped with TVSS (Transient Voltage Surge Suppression) outlets, the AC Power Module provides protection from transient voltage surges, and is intended for use where sensitive equipment would benefit from protection against the damage caused by such surges. A green indicator light on the face of the unit, when continuously lit, indicates surge protection is in effect. When the indicator light is off, the receptacle is no longer providing suppression. When protection is lost, an audible alarm will beep continuously. This power supply easily drops into a cutout in the bottom of the Structured Media Center. This design allows you to install the power required without taking up valuable space inside the enclosure

Features

  • 120VAC Power Module for Leviton 14", 21”, 28", and 42" Structured Media® Centers
  • Two 15-Amp duplex receptacles. Enough to power four pieces of active equipment – like a service provider modem or Leviton router or switch – in your Structured Media enclosure
  • In excessive power surges, a built-in audible alarm sounds to warn the user that power is now unprotected
  • Two cable knock-outs on bottom for power service connections
  • Safety clips protect outlets against dust, dirt, and debris
  • Provides optimum protection and EMI/RFI filtering that meets UL 1449 standards

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-6
UL1449 Std. 2nd Edition
File E146315
CSA C22.2 No. 42File 152105
NOM057
UL498HGFile E13399

Performance Data

Diagnostics
Indicator Light & Audible Alarm
MCOV
150V rms
Noise Rejection
-30dB at 500kHz-30MHz
Joules at 10/1000 micro-sec720
Max Surge Current L-N24kA
UL1449 Impulse 6kV/500A L-G400V

Material Specifications

Enclosure Material
Powder-Coated Steel

Mechanical Specifications

Quantity of Outlets
4

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Product Features

Feature
Surge
Standards and Certifications
UL
Series Compatibility280 and 420 Series Compatible
Warranty2-Year Limited

Electrical Ratings

Input Voltage
120 Volt AC
Output Voltage
120 Volt
Output Power15 Amp
TypeAC Power Module
