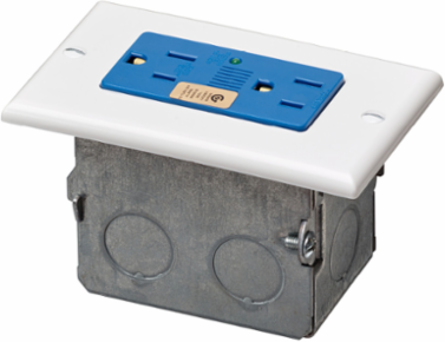

Leviton 47605-ACS Surge Protective J-Box Kit with One 15-Amp Duplex Receptacle, 720 Joules, UL 1449 Compliance
- MPN: 47605-ACS
- UPC: 078477093849
- PPN: LEV-47605-ACS
CAD
$96.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The J-Box Surge Protective Kit works with the Leviton STRUCTURED MEDIA Centers. The J-Box Kit features one 15-Amp duplex receptacle and wallplate, and provides EMI/RFI filtering that meets UL 1449 standards. A non-surge J-Box Kit ( 47605-ACN ) is also available
Features
- Surge-protected units provide greater protection for line-voltage modules, including multi-stage defense L-N,L-G,N-G.
- Provides 2 Outlets of protected power.
- Safety Clips protect outlets against dust, dirt and debris.
- Cable knockout on bottom for power service connection.
- Saves valuable real estate by mounting on outside of Structured Media Enclosures.
- Features EMI/RFI filtering and meets UL1449 standards.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL1449 Std. 2nd Edition | File E146315 |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| UL498HG | File E13399 |
Performance Data
| Diagnostics | Indicator Light & Audible Alarm |
|---|---|
| MCOV | 150V rms |
| Noise Rejection | -30dB at 500kHz-30MHz |
| Joules at 10/1000 micro-sec | 720 |
|---|---|
| Max Surge Current L-N | 24kA |
| UL1449 Impulse 6kV/500A L-G | 400V |
Material Specifications
| Enclosure Material | Powder-Coated Steel |
|---|
Mechanical Specifications
| Quantity of Outlets | 2 |
|---|
Product Features
| Feature | Surge |
|---|---|
| Standards and Certifications | UL |
| Series Compatibility | 140, 280, 420 Series Compatible |
|---|---|
| Warranty | 2-Year Limited |
Electrical Ratings
| Input Voltage | 120 Volt AC |
|---|---|
| Output Voltage | 120 Volt |
| Output Power | 15 Amp |
|---|---|
| Type | AC Power Module |
