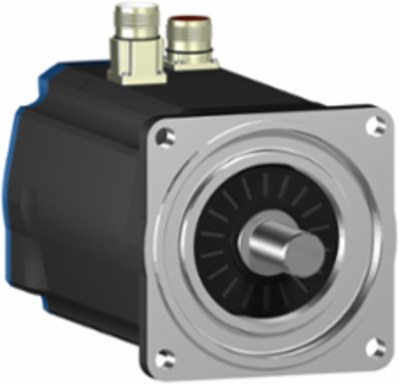

Schneider Electric BSH1401P31F1A Lexium 05 Servo Motor 11.1N.m 1500rpm 140mm IP65
- MPN: BSH1401P31F1A
- PPN: SCH-BSH1401P31F1A
CAD
$3299.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Schneider Electric Lexium 05 Servo Motor is engineered for high-performance motion control applications, delivering a robust torque of 11.1 Nm at speeds of up to 1500 rpm. With its IP65 rating, this motor is designed to operate effectively in demanding environments, ensuring protection against dust and water ingress. This precision-driven component is an essential choice for automation and control systems, providing reliability and efficiency in various industrial settings. Whether optimizing machinery or enhancing motion tasks, this servo motor stands out as a vital asset in any motion control setup.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 11.1 N.m
- Nominal Torque
- 9.5 N.m
- Nominal Output Power
- 1400 W
- Continuous Stall Current
- 7.8 A
- Switching Frequency
- 8 kHz
- Maximum Axial Force
- 0.2 x Radial Force
- Torque Constant
- 1.43 N.m/A (120 C)
- Stator Resistance
- 1.41 Ohm (20 C)
- Stator Electrical Time Constant
- 11.06 ms (20 C)
- Length
- 255.5 mm
- Shaft Diameter
- 24 mm (0.94 in)
- Key Width
- 40 mm (1.57 in)
- Mounting Holes Diameter
- 11 mm (0.43 in)
- Centring Collar Diameter
- 130 mm (5.12 in)
- Net Weight
- 13 kg (28.66 lb)
- Electrical Connection
- straight connectors
- Product Compatibility
- Lexium 05, Lexium 15, Lexium 32
- Mounting Support
- international standard flange
- Number Of Motor Stacks
- 1
- Rotor Inertia
- 9.21 kg.cm2
- Type Of Cooling
- natural convection
- Compliance
- Green Premium, RoHS Compliant, Mercury Free, PVC Free
Peak Stall Torque27 N.m
Holding Torque23 N.m
Maximum Mechanical Speed4000 rpm
Maximum Current Irms20.8 A
Maximum Radial Force1530 N (3000 rpm), 1760 N (2000 rpm), 2210 N (1000 rpm)
Speed1500 rpm
Back EMF Constant100 V/krpm (120 C)
Stator Inductance15.6 mH (20 C)
Supply Voltage Max480 V
Motor Flange Size140 mm
Shaft Length50 mm (1.97 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes165 mm (6.50 in)
Centring Collar Depth3.5 mm (0.14 in)
Network Number Of Phasesthree phase
Device TypeServo Motor
Holding Brakewith
Feedback Typesingle turn SinCos Hiperface
Number Of Motor Poles10
IP RatingIP65 standard, IP67 with IP67 kit
Country of OriginGermany (DE)
Warranty18 months
