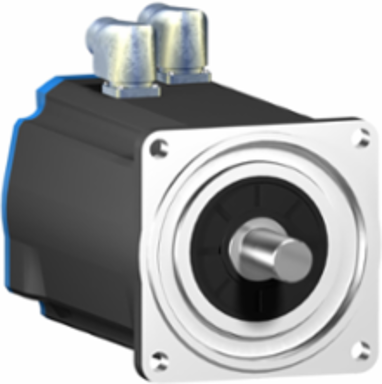

Schneider Electric BSH1401P31F2A AC Servo Motor 11.1 Nm 1500 RPM Keyed Shaft IP65
- MPN: BSH1401P31F2A
- PPN: SCH-BSH1401P31F2A
CAD
$3355.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and reliability, the Schneider Electric AC Servo Motor offers a robust performance with a torque rating of 11.1 Nm at 1500 RPM, making it an excellent choice for a variety of automation and motion control applications. Featuring a keyed shaft design, this motor ensures a secure connection for your systems while complying with IP65 standards to resist dust and moisture ingress. Perfect for demanding environments, this servo motor integrates seamlessly into industrial applications, enhancing efficiency and delivering precise control essential for advanced automation processes.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 11.1 N.m
- Nominal Torque
- 9.5 N.m (varies by model)
- Holding Torque
- 23 N.m holding brake
- Nominal Speed
- 1500 rpm to 3000 rpm (varies by model)
- Maximum Current Irms
- 20.8 A
- Switching Frequency
- 8 kHz
- Phase
- Three phase
- Shaft Diameter
- 24 mm (0.94 in.)
- Key Width
- 40 mm (1.57 in.)
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 165 mm (6.50 in.)
- Centring Collar Depth
- 3.5 mm (0.14 in.)
- Shaft Type
- Keyed
- Number Of Motor Poles
- 10
- Device Type
- Servo motor
- Type Of Cooling
- Natural convection
- Warranty
- 18 months
Peak Stall Torque27 N.m
Torque Constant1.43 N.m/A 120 °C
Nominal Output Power1400 W to 3000 W (varies by model)
Maximum Mechanical Speed4000 rpm
Continuous Stall Current7.8 A
Voltage480 V
Length255.5 mm (10.06 in.)
Shaft Length50 mm (1.97 in.)
Motor Flange Size140 mm (5.51 in.)
Mounting Holes Diameter11 mm (0.43 in.)
Centring Collar Diameter130 mm (5.12 in.)
Rotor Inertia9.21 kg·cm²
Feedback TypeSingle turn SinCos Hiperface
MaterialN/A
Ip Degree Of ProtectionIP65 standard, IP67 with kit
Environmental ComplianceRoHS Compliant, Mercury Free, PVC Free
Country of OriginGermany (DE)
