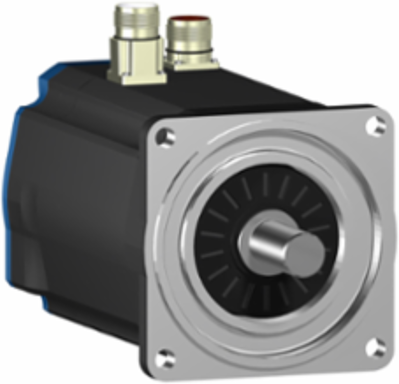

Lexium 05 AC Servo Motor 11.1 Nm 1500 RPM Keyed Shaft IP50
Schneider Electric

Schneider Electric BSH1401P11F1A Lexium 05 AC Servo Motor 11.1 Nm 1500 RPM Keyed Shaft IP50

  • MPN: BSH1401P11F1A
  • PPN: SCH-BSH1401P11F1A

CAD

$3187.74

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Lexium 05 AC Servo Motor from Schneider Electric stands out in the realm of automation and control, featuring a robust design with a torque rating of 11.1 Nm and a maximum speed of 1500 RPM. This servo motor is engineered for precision motion control, making it an excellent choice for various applications in industrial environments. Its keyed shaft ensures reliable coupling with other components, while an IP50 rating offers adequate protection against dust and indirect water contact. This combination of features makes the BSH1401P11F1A model an optimal solution for demanding motion control tasks that require both accuracy and durability.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Germany, France

Physical Attributes

Key Width
40 mm
Shaft Length
50 mm
Motor Flange Size140 mm

Complementary Attributes

Maximum Current Irms
LXM15LD28M3, LXM15MD28N4, LXM15MD40N4, LXM05AD34N4, LXM05BD34N4, LXM05CD34N4, LXM32.D30N4, 20.8 A
Line Rated Current
6.8 A
Maximum Axial Force Fa
0.2 x Fr
Maximum Operational Altitude
3000.0 m
Maximum Radial Force Fr
1530 N 3000 rpm1760 N 2000 rpm2210 N 1000 rpm
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed4000 rpm
Maximum Permanent Current20.8 A
Minimum Operational Altitude0.0 m

Important Information Attributes

Coefficient 1 1
-0.000633333333342631 N.m/rpm, -0.000633333333342631 N.m/rpm
Coefficient 1 5
-1.689E-27 N.m/rpm5, -1.689E-27 N.m/rpm5
Minimum Ambient Air Temperature For Operation
-20.0 °C, -20.0 °C
Nominal Torque
7.63 N.m LXM15MD40N4, 400 V, three phase9.1 N.m LXM15MD28N4, 230 V, three phase, 9.2 N.m full speed10.15 N.m half speed, 9.5 N.m LXM32.D30N4 10 A, 400 V, three phase, 9.5 N.m LXM32.D30N4 10 A, 480 V, three phase6.8 N.m LXM15MD28N4, 480 V, three phase, 6.8 N.m LXM15MD40N4 10 A, 480 V, three phase, 6.9 N.m LXM05AD34N4, 380...480 V, three phase, 6.9 N.m LXM05BD34N4, 380...480 V, three phase, 6.9 N.m LXM05CD34N4, 380...480 V, three phase, 7.63 N.m LXM15MD28N4, 400 V, three phase, 9.1 N.m LXM15LD28M3, 230 V, three phase
Saturation Coefficient
-9.59691619965E-19, -9.59691619965E-19
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.9 kg CO2 eq., 0.9225210811
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
43 kg CO2 eq., 42.8595135135
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
Yes
Field Service Division
IDIBS
Weee Scope
In
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Product Kit Identifier
N
Circle Diameter Of The Mounting Holes
165 mm
Coefficient 1 4
8.480379E-24 N.m/rpm4
Continuous Power
3.6 W
Derating Altitude Scale
80.0 m
Derating Temperature Scale
80.0 °C
Device Short Name
BSH
Feedback Type
single turn SinCos Hiperface
Holding Torque
23 N.m holding brake
Maximum Operational Altitude
3000.0 m
Motor Figures
400.0 V
Mounting Holes Diameter
11 mm
Network Number Of Phases
3
Number Of Motor Stacks
1
Peak Nominal Torque
27.0 N.m
Product Availability
Non-Stock - Not normally stocked in distribution facility
Returnability
No
Second Shaft
without second shaft end
Shaft End
keyed
Software Version
EIME v5.8.1
Stator Electrical Time Constant
11.06 ms 20 °C
Stator Resistance
1.41 Ohm 20 °C
Switching Frequency
8 kHz
Temperature Magnet Hot
100 °C
Torque Constant
1.43 N.m/A 120 °C
Type Of Cooling
natural convection
Pep Code
ENVPEP111049EN
Pep Verification Date
2020-08-01
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime In Kwh
6605.04
Energy Model - Installation [A5]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
[Us] Rated Supply Voltage
480 V
Brake Pull-in Power
24 W
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8501528040
Coefficient 1 3-2.005025509E-20 N.m/rpm3, -2.005025509E-20 N.m/rpm3
Continuous Stall Torque11.1 N.m LXM15MD28N4 10 A, 480 V, three phase11.1 N.m LXM15MD40N4, 480 V, three phase11.1 N.m LXM32.D30N4 10 A, 400 V, three phase, 11.1 N.m LXM32.D30N4 10 A, 480 V, three phase, 11.1 N.m LXM15MD28N4, 400 V, three phase, 11.1 N.m LXM15MD28N4, 230 V, three phase, 11.1 N.m LXM15MD40N4, 400 V, three phase, 11.1 N.m LXM15LD28M3, 230 V, three phase, 11.4 N.m LXM05AD34N4, 380...480 V, three phase, 11.4 N.m LXM05BD34N4, 380...480 V, three phase, 11.4 N.m LXM05CD34N4, 380...480 V, three phase
Nominal Speed2500 rpm LXM15MD28N4, 400 V, three phase LXM15MD28N4, 480 V, three phase LXM15MD40N4, 480 V, three phase3000 rpm, 2500 rpm LXM32.D30N4 10 A, 400 V, three phase3000 rpm LXM32.D30N4 10 A, 480 V, three phase3000 rpm LXM05AD34N4, 380...480 V, three phase, 3000 rpm LXM05BD34N4 10 A, 380...480 V, three phase, 3000 rpm LXM05CD34N4, 380...480 V, three phase, 1500 rpm LXM15MD28N4, 230 V, three phase, 1500 rpm LXM15LD28M3, 230 V, three phase, 2500 rpm LXM15MD40N4, 400 V, three phase
Peak Stall Torque23.33 N.m LXM15MD28N4 10 A, 400 V, three phase23.33 N.m LXM15MD28N4, 480 V, three phase23.33 N.m LXM15MD40N4, 480 V, three phase27 N.m LXM32.D30N4 10 A, 400 V, three phase, 27 N.m LXM32.D30N4 10 A, 480 V, three phase, 23.33 N.m LXM15MD28N4, 230 V, three phase, 23.33 N.m LXM15MD40N4, 400 V, three phase23.8 N.m LXM15LD28M3, 230 V, three phase23.33 N.m LXM05AD34N4, 380...480 V, three phase, 23.33 N.m LXM05BD34N4, 380...480 V, three phase, 23.33 N.m LXM05CD34N4, 380...480 V, three phase
Carbon Footprint Of The Distribution Phase [A4]1.2630783784, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0868495676, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 236 kg CO2 eq., 3236.1041385948
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Centring Collar Diameter130 mm
Coefficient 1 22.2092693643302E-17 N.m/rpm²
Coefficient 1 60 N.m/rpm6
Continuous Stall Current7.8 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionstraight connectors
Holding Brakewith
Inertia1.8 kg.cm² of brake7.41 kg.cm² of motor
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportinternational standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia9.21 kg.cm²
Shaft Diameter24 mm
Sizing ReferenceBSH1401P
Speed Feedback Resolution131072 points/turn
Stator Inductance8.17 mH 20 °C
Sustainable PackagingNo
Temperature Copper Hot120 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint3 281 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Length Total255.5 mm
Accuracy Error [Angular]1.4 °
Maximum [In] Rated Current6.8 A
Package Weight(Lbs)9.79 kg
Warranty (In Months)18

Environment Attributes Main

Product Compatibility
LXM15MD40N4 480 V three phase, LXM15MD28N4 230 V three phaseLXM15LD28M3 230 V three phaseLXM05AD34N4 380...480 V three phase, LXM05BD34N4 380...480 V three phase, LXM05CD34N4 380...480 V three phaseLXM15MD28N4 400 V three phase, LXM15MD28N4 480 V three phase, LXM15MD40N4 400 V three phase
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Environmental Disclosure
ENVPEP111049EN
Ip Degree Of Protection
IP50 standard
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP111049EN
Pcr Version
PCR-ed3-EN-2015 04 02
Take BackNo
China Rohs RegulationX
Carbon Footprint3281.2361011353
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review

General Attributes

Phase
three phase
Product Or Component Typeservo motor

ETIM

ETIM 8
EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power
1400 W LXM15MD28N4, 230 V, three phase2150 W LXM15MD40N4, 480 V, three phase2500 W LXM32.D30N4 10 A, 400 V, three phase3000 W LXM32.D30N4 10 A, 480 V, three phase2000 W LXM15MD28N4, 400 V, three phase, 2000 W LXM15MD40N4 10 A, 400 V, three phase, 2200 W LXM05AD34N4, 380...480 V, three phase, 2200 W LXM05BD34N4, 380...480 V, three phase, 2200 W LXM05CD34N4, 380...480 V, three phase, 1400 W LXM15LD28M3, 230 V, three phase, 2150 W LXM15MD28N4, 480 V, three phase
Output Current 3s Peak20.8 A

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
