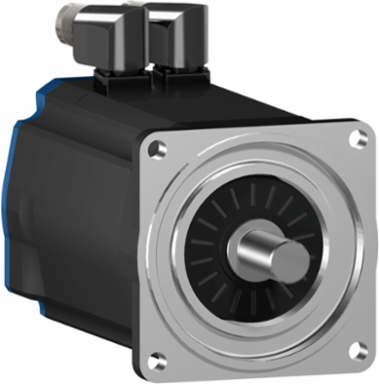

Schneider Electric BSH1001P11F2A Lexium 05 Servo Motor 2.7N.m 3000rpm 100mm Keyed Shaft IP50
- MPN: BSH1001P11F2A
- PPN: SCH-BSH1001P11F2A
CAD
$2380.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 05 Servo Motor from Schneider Electric is engineered for precision motion control, making it an essential component for automation applications. With a torque rating of 2.7 N·m and a high operational speed of 3000 rpm, this servo motor delivers robust performance suitable for a variety of demanding tasks. Its 100mm keyed shaft ensures secure coupling with other mechanical components, while the IP50 rating offers a reliable level of protection against dust and debris. This makes the BSH1001P11F2A model a versatile choice for enhancing efficiency and reliability in your motion control systems.
Documentation & Downloads
Specifications
Additional
- Maximum Mechanical Speed
- 6000 rpm
- Nominal Output Power
- 1300 W
- Maximum Current Irms
- 12 A
- Torque Constant
- 0.89 N.m/A 120 0C
- Holding Torque
- 9 N.m holding brake
- Switching Frequency
- 8 kHz
- Stator Resistance
- 3.8 Ohm 20 0C
- Stator Electrical Time Constant
- 4.63 ms 20 0C
- IP Degree of Protection
- IP50 standard
- Shaft Diameter
- 19 mm (0.75 in)
- Key Width
- 30 mm (1.18 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 115 mm (4.53 in)
- Feedback Type
- single turn SinCos Hiperface
- Shaft End
- keyed
- Electrical Connection
- rotatable right-angled connectors
- Back Emf Constant
- 60 V/krpm 120 0C
- Product Type
- servo motor
- Warranty
- 18 months
Nominal Speed3000 rpm
Continuous Stall Current3.5 A
Maximum Permanent Current12 A
Peak Stall Torque7.08 N.m
Holding Brakewith
Rotor Inertia2.018 kg.cm
Stator Inductance17.6 mH 20 0C
Type of Coolingnatural convection
Length199.5 mm (7.85 in)
Shaft Length40 mm (1.57 in)
Motor Flange Size100 mm (3.94 in)
Mounting Holes Diameter9 mm (0.35 in)
Number of Motor Poles8
Speed Feedback Resolution131072 points/turn
Net Weight4.8 kg
Mounting Supportinternational standard flange
Environmental CompliancePro-active EU RoHS compliance; RoHS Exemption: Yes; Mercury Free; PVC Free
Range CompatibilityLexium 15, Lexium 32, Lexium 05
