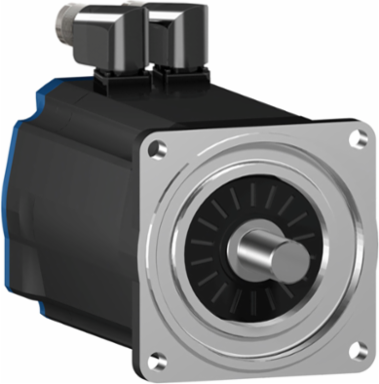

Schneider Electric BSH1001P12A2A Servo Motor 100mm Keyed Shaft, 2.7 N.m Torque, 3000 rpm, IP50
- MPN: BSH1001P12A2A
- PPN: SCH-BSH1001P12A2A
CAD
$2732.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This high-performance servo motor from Schneider Electric features a 100mm keyed shaft, delivering a robust torque of 2.7 N.m and capable of reaching speeds up to 3000 rpm. Engineered for precision and reliability, it is suitable for various automation and motion control applications. With an IP50 rating, it provides a degree of protection against dust, making it a dependable choice for diverse industrial environments where efficiency and durability are essential.
Documentation & Downloads
Specifications
Additional
- Torque Constant
- 0.89 N.m/A 120 °C
- Peak Stall Torque
- 7.08 N.m
- Maximum Mechanical Speed
- 6000 rpm
- Nominal Output Power
- 1300 W
- Maximum Current Irms
- 12 A
- Voltage
- 480 V
- Torque
- 2.7 N.m
- Stator Resistance
- 3.8 Ohm 20 °C
- Stator Electrical Time Constant
- 4.63 ms 20 °C
- Shaft Length
- 40 mm (1.57 in)
- Shaft End
- Keyed
- Length
- 168.5 mm (6.63 in)
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Mounting Holes Diameter
- 9 mm (0.35 in)
- Net Weight
- 4.2 kg (9.26 lb)
- Electrical Connection
- Rotatable right-angled connectors
- Mounting Support
- International standard flange
- Type of Cooling
- Natural convection
- Product Or Component Type
- Servo motor
- Pvc Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Range Compatibility
- Lexium 32, Lexium 05, Lexium 15
Continuous Stall Torque3.39 N.m
Nominal Torque3 N.m
Nominal Speed3000 rpm
Continuous Stall Current3.5 A
Switching Frequency8 kHz
PhaseThree phase
Speed3000 rpm
Stator Inductance17.6 mH 20 °C
Shaft Diameter19 mm (0.75 in)
Key Width30 mm (1.18 in)
Motor Flange Size100 mm (3.94 in)
Centring Collar Diameter95 mm (3.74 in)
Number of Mounting Holes4
Circle Diameter of the Mounting Holes115 mm (4.53 in)
Rotor Inertia1.4 kg.cm²
Number Of Motor Poles8
IP Degree of ProtectionIP50
Feedback TypeMultiturn SinCos Hiperface
Country of OriginDE
Mercury FreeYes
Warranty18 months
