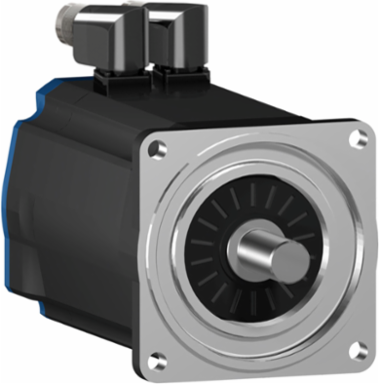

Schneider Electric BSH1001P12F2A Lexium Servo Motor, 100mm, 2.7N.m, 3000rpm, Keyed Shaft, IP50
- MPN: BSH1001P12F2A
- PPN: SCH-BSH1001P12F2A
CAD
$3323.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and performance, the Lexium Servo Motor from Schneider Electric is a remarkable component in the realm of motion control. This particular model features a 100mm frame and delivers a robust torque of 2.7N.m, making it suitable for a variety of automated applications. With a maximum speed of 3000rpm, it facilitates rapid motion and accurate positioning, essential for demanding industrial environments. The keyed shaft design ensures secure attachment and reliable operation, while its IP50 rating offers moderate protection against dust, making it an excellent choice for controlled settings in automation and control.
Documentation & Downloads
Specifications
Additional
- Nominal Speed
- 3000 rpm
- Peak Stall Torque
- 7.1 N.m
- Torque Constant
- 0.89 N.m/A
- Maximum Current Irms
- 12 A
- Nominal Output Power
- 1300 W
- Phase
- Three phase
- Frame Size
- 100 mm
- Shaft Type
- Keyed
- Shaft Length
- 40 mm (1.57 in)
- Motor Flange Size
- 100 mm (3.94 in)
- Mounting Holes Diameter
- 9 mm (0.35 in)
- Net Weight
- 4.8 kg (10.58 lb)
- Type of Cooling
- Natural convection
- Stator Inductance
- 17.6 mH (20 °C)
- Number of Motor Poles
- 8
- Brake Pull-in Power
- 18 W
- Compliance
- RoHS, REACh, Mercury free, China RoHS, PVC free
Maximum Mechanical Speed6000 rpm
Continuous Stall Torque3.39 N.m
Holding Torque9 N.m holding brake
Continuous Stall Current3.5 A
Voltage480 V
Torque2.7 N.m
Length199.5 mm (7.85 in)
Shaft Diameter19 mm (0.75 in)
Key Width30 mm (1.18 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes115 mm (4.53 in)
MaterialN/A
Stator Resistance3.8 Ohm (20 °C)
Rotor Inertia2.018 kg.cm²
Holding BrakeWith
IP RatingIP50 standard
Country of OriginGermany
