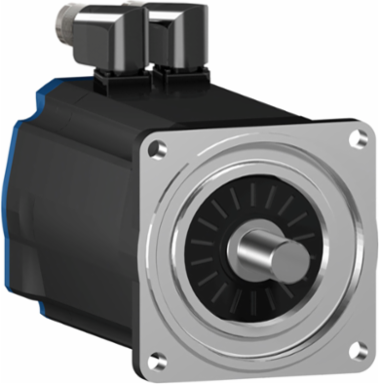

Schneider Electric BSH1001P01A2A Lexium 05 Servo Motor 2.7N.m 3000rpm 100mm IP50
- MPN: BSH1001P01A2A
- PPN: SCH-BSH1001P01A2A
CAD
$1725.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 05 Servo Motor from Schneider Electric is designed for precision and reliability in automation and control applications. With a torque rating of 2.7N.m and a maximum speed of 3000 RPM, this motor is capable of delivering impressive performance for a variety of motion control tasks. Its IP50 rating ensures protection against dust, making it suitable for use in challenging industrial environments. Whether you're developing sophisticated automation systems or enhancing existing machinery, this servo motor offers the robustness and efficiency needed to optimize performance.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 7.08 N.m
- Continuous Stall Torque
- 3.39 N.m
- Maximum Current Irms
- 12 A
- Nominal Speed
- 3000 rpm
- Supply Voltage
- 480 V
- Torque Constant
- 0.89 N.m/A 120 °C
- Switching Frequency
- 8 kHz
- Maximum Axial Force
- 0.2 x Fr
- Shaft Diameter
- 19 mm (0.75 in)
- Motor Flange Size
- 100 mm
- Mounting Holes Diameter
- 9 mm (0.35 in)
- Centring Collar Diameter
- 95 mm (3.74 in)
- Net Weight
- 4.2 kg (9.26 lb)
- Type Of Cooling
- Natural convection
- Shaft End
- Untapped
- Electrical Connection
- Rotatable right-angled connectors
- Stator Inductance
- 17.6 mH (20 °C)
- Number Of Motor Poles
- 8
- IP Degree Of Protection
- IP50
- Country Of Origin
- Germany
Nominal Torque3 N.m
Maximum Permanent Current12 A
Continuous Stall Current3.5 A
Maximum Mechanical Speed6000 rpm
PhaseThree phase
Back Emf Constant60 V/krpm 120 °C
Maximum Radial Force530 N (5000 rpm)
Length168.5 mm (6.63 in)
Shaft Length40 mm (1.57 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes115 mm (4.53 in)
Centring Collar Depth3.5 mm (0.14 in)
MaterialN/A
Holding BrakeWithout
Mounting SupportInternational standard flange
Stator Resistance3.8 Ohm (20 °C)
Stator Electrical Time Constant4.63 ms (20 °C)
Rotor Inertia1.4 kg.cm²
ComplianceREACH, RoHS, China RoHS, PVC free
Warranty18 months
