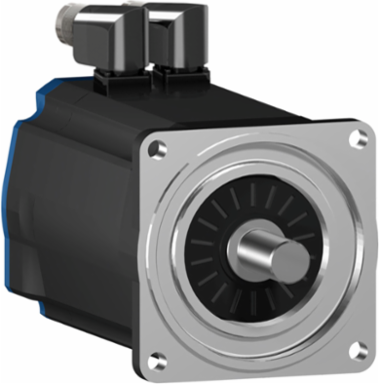

Schneider Electric BSH1001P31A2A Lexium 05 Servo Motor, 100mm, 2.7N.m, 3000rpm, IP65
- MPN: BSH1001P31A2A
- PPN: SCH-BSH1001P31A2A
CAD
$1885.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 05 Servo Motor from Schneider Electric is engineered for high performance in motion control applications, featuring a compact 100mm design that makes it ideal for integration into various automation systems. With a robust torque rating of 2.7N·m and an impressive maximum speed of 3000rpm, this servo motor delivers precise and reliable movement control, ensuring optimal operation for demanding tasks. Additionally, the IP65 rating provides essential protection against dust and water, making it suitable for use in harsh environments. This motor is a valuable addition for those looking to enhance their automation and control solutions.
Documentation & Downloads
Specifications
Additional
- Torque
- 2.7 N.m
- Nominal Speed
- 3000 rpm
- Maximum Current Irms
- 12 A
- Peak Stall Torque
- 7.08 N.m
- Stator Resistance
- 3.8 Ohm (20 °C)
- Stator Electrical Time Constant
- 4.63 ms (20 °C)
- Maximum Axial Force
- 0.2 x Radial Force
- Phase
- Three phase
- Length
- 168.5 mm (6.63 in)
- Shaft Length
- 40 mm (1.57 in)
- Number of Motor Poles
- 8
- Type of Cooling
- Natural convection
- Mounting Holes Diameter
- 9 mm (0.35 in)
- Net Weight
- 4.2 kg (9.26 lb)
- Electrical Connection
- Rotatable right-angled connectors
- Compliance
- REACH, RoHS, China RoHS, Mercury Free, PVC Free
- Country of Origin
- Germany
Maximum Speed6000 rpm
Continuous Stall Current3.5 A
Continuous Stall Torque3.39 N.m
Nominal Output Power1300 W
Stator Inductance17.6 mH (20 °C)
Maximum Radial Force900 N at 1000 rpm
Supply Voltage480 V
Feedback TypeSingle turn SinCos Hiperface
Shaft Diameter19 mm (0.75 in)
Key Width30 mm (1.18 in)
Rotor Inertia1.4 kg.cm²
Number of Mounting Holes4
Circle Diameter of Mounting Holes115 mm (4.53 in)
Mounting SupportInternational standard flange
Shaft TypeKeyed
IP RatingIP65 standard, IP67 with IP67 kit
Warranty18 months
