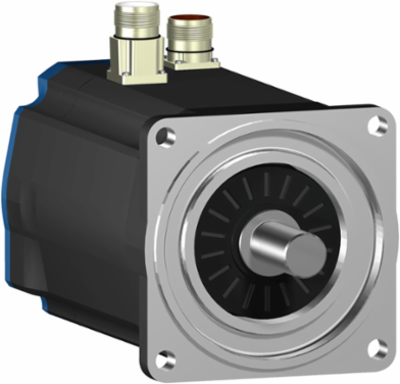

Schneider Electric BSH1003P31A1A Lexium 05 Servo Motor 7.8N.m 2500rpm 100mm IP65 Keyed Shaft
- MPN: BSH1003P31A1A
- PPN: SCH-BSH1003P31A1A
CAD
$2005.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for excellence in motion control applications, this servo motor from Schneider Electric provides a robust torque of 7.8 N.m and operates at an impressive speed of 2500 rpm. The Lexium 05 model features a 100mm keyed shaft, ensuring dependable connectivity in various setups. Designed with an IP65 rating, it offers superior protection against dust and moisture, making it suitable for demanding industrial environments. This reliable motor is a key component for achieving precise and efficient performance in automation and control systems.
Documentation & Downloads
Specifications
Additional
- Maximum Mechanical Speed
- 6000 rpm
- Speed Feedback Resolution
- 131072 points/turn
- Continuous Stall Current
- 6.6 A
- Nominal Output Power
- 2000 W
- Length
- 240.5 mm (9.47 in)
- Shaft Length
- 40 mm (1.57 in)
- Motor Flange Size
- 100 mm (3.94 in)
- Mounting Holes Diameter
- 9 mm (0.35 in)
- Net Weight
- 7.4 kg (16.31 lb)
- Type Of Cooling
- natural convection
- Stator Inductance
- 8.8 mH 20 °C
- IP Degree Of Protection
- IP65 standard (IP65)
- RoHS
- Compliant
- Electrical Connection
- straight connectors
Torque7.8 N.m
Switching Frequency8 kHz
Maximum Current Irms28.3 A
Phasethree phase
Shaft Diameter19 mm (0.75 in)
Key Width30 mm (1.18 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes115 mm (4.53 in)
Number Of Motor Poles8
Stator Resistance1.43 Ohm 20 °C
Rotor Inertia3.22 kg.cm²
Material CompliancePVC free, Mercury free
Country Of OriginGermany (DE)
