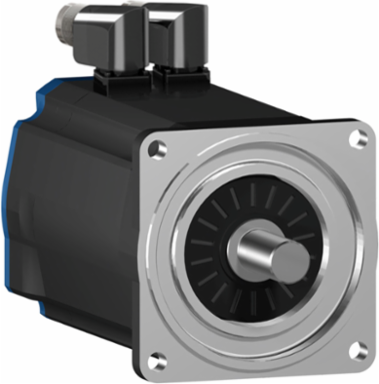

Schneider Electric BSH1003P31F2A Servo Motor Lexium 05, 7.8N.m, 2500rpm, 100mm Keyed Shaft, IP65
Schneider Electric BSH1003P31F2A Servo Motor Lexium 05, 7.8N.m, 2500rpm, 100mm Keyed Shaft, IP65
- MPN: BSH1003P31F2A
- PPN: SCH-BSH1003P31F2A
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2575.62/ EA
Description
The Schneider Electric BSH1003P31F2A Servo Motor Lexium 05 is engineered to deliver exceptional performance with a maximum torque of 7.8N.m and a speed of 2500rpm, making it an ideal choice for automation and motion control applications. Featuring a durable IP65 rating, this servo motor is designed to withstand challenging environments, providing reliable operation even in the presence of dust and water. Its 100mm keyed shaft ensures secure attachment and compatibility with various systems, enhancing versatility in implementation. With its advanced technology and robust construction, this servo motor is a vital component for achieving precise control in automated processes.
Specifications
- Nominal Output Power
- 2000 W
- Torque Constant
- 1.22 N.m/A 120 °C
- Holding Torque
- 9 N.m holding brake
- Continuous Stall Current
- 6.6 A
- Maximum Mechanical Speed
- 6000 rpm
- Torque
- 7.8 N.m
- Holding Brake
- with
- Shaft Diameter
- 19 mm
- Key Width
- 30 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 115 mm
- Number Of Motor Stacks
- 3
- Electrical Connection
- rotatable right-angled connectors
- Mounting Support
- international standard flange
- Stator Resistance
- 1.43 Ohm (20 °C)
- Stator Electrical Time Constant
- 6.15 ms (20 °C)
- IP Degree Of Protection
- IP65 standard, IP67 with IP67 kit
- Eu Rohs Directive
- Pro-active compliance (out of EU RoHS scope)
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Weee
- Must be disposed per EU waste regulation
- Product Or Component Type
- servo motor
- Warranty
- 18 months
Nominal Speed3000 rpm
Continuous Stall Torque8 N.m
Peak Stall Torque28.3 N.m
Maximum Current Irms28.3 A
Switching Frequency8 kHz
Speed2500 rpm
Length271.5 mm
Shaft Length40 mm
Motor Flange Size100 mm
Mounting Holes Diameter9 mm
Net Weight8 kg
Number Of Motor Poles8
Shaft Endkeyed
Rotor Inertia3.838 kg.cm²
Stator Inductance8.8 mH (20 °C)
Type Of Coolingnatural convection
Pvc FreeYes
China Rohs RegulationX
Rohs Exemption InformationYes
Reach RegulationContains SVHC above threshold
Country of OriginGermany
Device Short NameBSH
