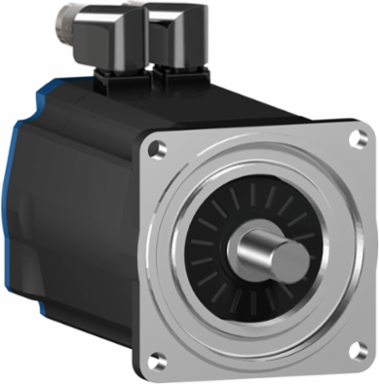

Schneider Electric BSH1004P21A2A Servo Motor, 100mm, 9.31 N.m Torque, 1500 RPM, IP65
- MPN: BSH1004P21A2A
- PPN: SCH-BSH1004P21A2A
CAD
$2029.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This sophisticated servo motor from Schneider Electric is engineered for precision and high performance in automation and control applications. With a robust output of 9.31 N.m of torque and a maximum speed of 1500 RPM, the 100mm motor excels in demanding motion control tasks. Its IP65 rating ensures reliable operation in challenging environments, protecting against dust and moisture.
Designed for a wide range of uses in modern industrial settings, this servo motor offers unmatched efficiency and durability, making it an excellent choice for enhancing your automation systems.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Current
- 6.2 A
- Torque
- 9.31 N.m
- Nominal Speed
- 1500 rpm
- Maximum Radial Force
- 1070 N at 1000 rpm
- Supply Voltage
- Up to 480 V
- Number of Motor Poles
- 8
- Stator Resistance
- 1.81 Ohm at 20 °C
- Switching Frequency
- 8 kHz
- Back Emf Constant
- 103 V/krpm at 120 °C
- Length
- 276.5 mm (10.89 in)
- Shaft Length
- 50 mm (1.97 in)
- Centring Collar Diameter
- 95 mm
- Number Of Mounting Holes
- 4
- Mounting Support
- international standard flange
- Shaft End
- untapped
- Type Of Cooling
- natural convection
- IP Degree of Protection
- IP65 standard, IP67 with kit
- China RoHS Regulation
- Compliant
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Sustainable Offer Status
- Green Premium product
Continuous Power3.64 W
Maximum Mechanical Speed6000 rpm
Maximum Current Irms30-34.8 A depending on model
Maximum Axial Force0.2 x Radial Force
PhaseThree phase
Rotor Inertia4.22 kg.cm²
Stator Inductance11.8 mH at 20 °C
Torque Constant1.62 N.m/A at 120 °C
Motor Flange Size100 mm
Shaft Diameter24 mm (0.94 in)
Mounting Holes Diameter9 mm
Centring Collar Depth3.5 mm
Electrical Connectionrotatable right-angled connectors
Net Weight9.5 kg (20.94 lb)
Second Shaftwithout second shaft end
Product Or Component Typeservo motor
ComplianceRoHS, REACh, China RoHS
Eu RoHS DirectivePro-active compliance (out of EU RoHS legal scope)
WEEEEU waste collection compliant
Mercury FreeYes
