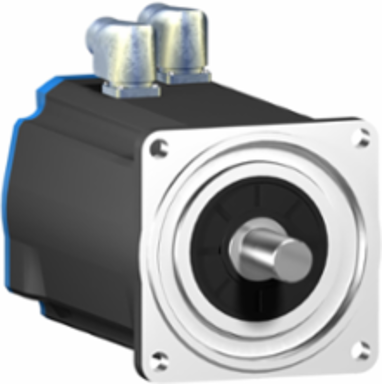

Schneider Electric BSH1401P21A2A AC Servo Motor, 11.1 N.m Torque, 1500 RPM, IP65, 11.9 kg
- MPN: BSH1401P21A2A
- PPN: SCH-BSH1401P21A2A
CAD
$2364.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BSH1401P21A2A AC Servo Motor is a powerful solution for various automation and motion control applications. With a robust torque output of 11.1 N.m and a high-speed capability of 1500 RPM, this motor is engineered to deliver reliable performance in demanding environments. Its IP65 rating ensures protection against dust and water ingress, making it suitable for industrial settings. Weighing in at 11.9 kg, this servo motor combines durability and efficiency, providing precise control and responsiveness that enhance your system's overall effectiveness.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 11.1 N.m
- Nominal Torque
- 6.8 N.m to 9.5 N.m (varies by model)
- Maximum Mechanical Speed
- 4000 rpm
- Speed Feedback Resolution
- 131072 points/turn
- Maximum Radial Force
- 2210 N (1000 rpm)
- Length
- 217.5 mm
- Shaft Length
- 50 mm
- Centring Collar Diameter
- 130 mm
- Circle Diameter of Mounting Holes
- 165 mm
- Net Weight
- 11.9 kg
- Torque Constant
- 1.43 N.m/A
- Number of Motor Poles
- 10
- Stator Resistance
- 1.41 Ohm 20 °C
- Stator Electrical Time Constant
- 11.06 ms 20 °C
- Mounting Support
- international standard flange
- Shaft End
- untapped
- Type of Cooling
- natural convection
- Supply Voltage
- 480 V
- Continuous Stall Current
- 7.8 A
- Maximum Permanent Current
- 20.8 A
- Product Type
- servo motor
- Country of Origin
- DE
- Mercury Free
- Yes
- Environmental Compliance
- Green Premium
- Reach Regulation
- Contains SVHC above threshold
Peak Stall Torque27 N.m
Nominal Speed1500 rpm to 3000 rpm (varies by model)
Nominal Output Power1400 W to 3000 W (varies by model)
Switching Frequency8 kHz
Maximum Axial Force0.2 x Fr
Shaft Diameter24 mm
Mounting Holes Diameter11 mm
Centring Collar Depth3.5 mm
Number of Mounting Holes4
Motor Flange Size140 mm
Back Emf Constant100 V/krpm
Rotor Inertia7.41 kg.cm²
Stator Inductance15.6 mH 20 °C
Electrical Connectionrotatable right-angled connectors
Holding Brakewithout
Second Shaftwithout second shaft end
IP RatingIP65 standard, IP67 with IP67 kit
Phasethree phase
Maximum Current Irms20.8 A
Range CompatibilityLexium 15, Lexium 32, Lexium 05
Device Short NameBSH
RoHS CompliantYes
PVC FreeYes
Sustainable Offer StatusGreen Premium product
