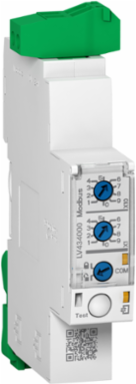

Schneider Electric LV434000 IFM Modbus Interface Module, 24V DC, 3A Output, IP30 Protection
- MPN: LV434000
- PPN: SCH-LV434000
CAD
$1694.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This IFM is a Modbus interface module, and it is part of EnerlinX communication system. It is required for connection of MasterPacT, ComPacT and PowerPacT circuit breakers to a Modbus Serial Line network. Once connected, the circuit breaker is considered as a slave by the Modbus master. The Modbus address is easily set with two rotary switches on its front face. It is equipped on the top with one 24VDC screw clamp terminal block and one RJ45 socket for Modbus Serial line. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFM interface is a DIN rail mounting device and its dimensions are 18mm x 72mm x 96mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFM interface is entirely part of the EcoStruxure Power architecture. The IFM interface firmware can be updated using EcoStruxure Power Commission software.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Argentina, Brazil, China, France, Indonesia, Mexico, Sweden, Singapore, United States |
|---|
| Depth | 73 mm |
|---|
Communications & Management Attributes
| Communication Network Type | Universal Logic Plug 2-port RJ45Modbus, Modbus Serial line slave 9.6...38.4 kbauds 1 RJ45 |
|---|
Important Information Attributes
| Persona Type Ids | PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Range Of Product | ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200 |
| Certificate Agency | EAC, cULus, CE, FCC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.018635, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.083038, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 21 kg CO2 eq., 20.681 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Device Type | Relay, Control & Measurement - gateway |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Use Carbon Footprint | 20.681 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2305018EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1915 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Compatibility Code | IFM |
| Device Short Name | IFM |
| Flame Retardance | V0 conforming to UL 94 |
| Mounting Mode | by clips |
| Power Consumption In W | 1.635 W |
| Product Or Component Type | interface module |
| Returnability | Yes |
| Sustainable Packaging | No |
| Vibration Frequency | 5-8.4 Hz EN/IEC 60068-2 |
| Pep Code | ENVPEP2305018EN |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 109 mm |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 117.000 g |
| Warranty (In Months) | 18 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 20.653 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 20.681 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 526.89 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 222.72 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 74.12 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 30.749 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 1.5843 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 1.5941 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 82.081 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 1.0355 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 101.18 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 1.5941 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 526.89 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 0.1207 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 101.18 |
| Water Use (M3 Eq) End Of Life [C1-c4] | 24.301 |
| Other Technical Guide Name | ESXP1G003EN |
| Persona Type Names | Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Shock Resistance | +/- 15 gn 11 ms EN/IEC 60068-2-27, +/- 15 gn 11 ms EN/IEC 60068-2-27, +/- 15 gn 11 ms EN/IEC 60068-2-27+/- 15 gn 11 ms EN/IEC 60068-2-27, +/- 15 gn 11 ms EN/IEC 60068-2-27, +/- 15 gn 11 ms EN/IEC 60068-2-27 |
| Connections - Terminals | RJ45 connector, screw type terminals |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2 kg CO2 eq., 0.16007 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 7 kg CO2 eq., 6.6796 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | DPIBS |
| Manufacturing Carbon Footprint | 6.6796 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Current Consumption | 30 mA 24 V DC room temperature |
| Energy Efficiency Optimized | False |
| Memory Type | EEPROM data storage |
| Mounting Support | 35 mm DIN rail |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | Enerlin'X |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 28 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | The main function of the IFM V2 MODBUS COMMUNICATION INTERFACE is to convert ULP protocol to Modbus serial in order to transmit Breaker Parameters like voltage, Current, Power Factor to supervisor during 10 years. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; ID |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 1 |
| Width Nominal | 18 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] | 6.6773 |
| Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] | 6.6796 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 79.388 |
| Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] | 84.073 |
| Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] | 47.649 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] | 3.3294 |
| Net Use Of Fresh Water (M3) End Of Life [C1-c4] | 0.6361 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 2.9755 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 1.5941 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 628.06 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 2.6926 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 1.5941 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 77.794 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 0.1207 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 2.572 |
| Water Use (M3 Eq) Manufacturing [A1-a3] | 2.9614 |
| Customs Code | 8517620090 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
| Halogene Performance | Product contains halogen above thresholds |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2305018EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | connectors IP20other parts IP30 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-85 % 55-55 °C without condensation |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Operation | -20-70 °C, -20-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 27.622343 |
| Environmental Disclosure | ENVPEP2305018EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2305018EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Range Of Product | ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200 |
|---|
| Product Or Component Type | interface module |
|---|
ETIM
| ETIM 8 | EC001604 |
|---|
| ETIM 9 | EC001604 |
|---|
Output Attributes
| Output Current | 3 A |
|---|
| Output Voltage | 24 V DC |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 24 V DC - 20...10 % |
|---|
