Hubbell Wiring Device-Kellems

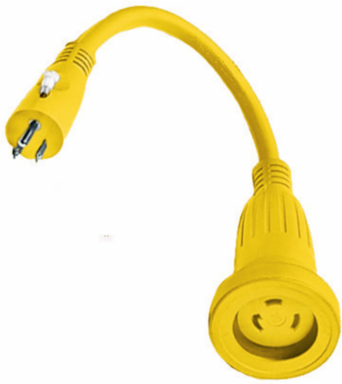

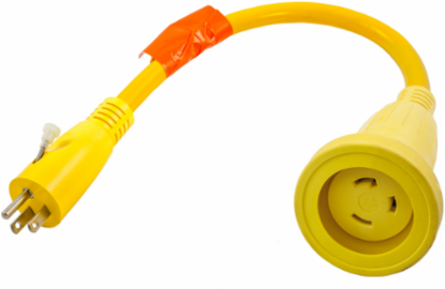

Hubbell Wiring Device-Kellems HBL61CM22 Marine 30A 125V Locking Female to 15A 125V Male Adapter, Yellow

Marine 30A 125V Locking Female to 15A 125V Male Adapter, Yellow
Marine 30A 125V Locking Female to 15A 125V Male Adapter, Yellow
  • MPN: HBL61CM22
  • UPC: 783585808598
  • PPN: HBL-HBL61CM22
  • UNSPSC: 39121710

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$387.34/ EA

Description

Adapter, Marine, Molded, Straight Blade, 30A 125V Locking Female L5-30R to 15A 125V 5-15P Straight Blade Male, Yellow

Features

  • New quick connect with backwards compatibility
  • Corrosion Resistant

Specifications

Specifications

Country of Origin
China
Amperage Rating
30 A
Color
Yellow
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Special Features
Corrosion Resistant
Wattage
3750
Number Of Pins
Male- 15A 125V Straight Blade
Description - Invoice
MARINE ADAPT, STR, YL, 30A L TO 15A SB
Harmonization Code
8544429090
MSDS Flag
No
Sub Class Code
A32A320
Receptacle Type
Female- 30A 125V Twist-Lock®
BOX SIZE
7.900x19.200x13.600 (in)
Carton - Number of Sub Packs
5
Carton - SCC-14 Next Lower Level Sub Pack
783585808598
Case Weight
8.700 lb.
Lowest Level UOM
Each
Pallet Height
47.400 in
Pallet Weight
365.400 lb.
Width6.800 in
ApplicationStraight Adapter
Number of PinsMale- 15A 125V Straight Blade
ReceptacleFemale- 30A 125V Twist-Lock®
Voltage Rating125 VAC
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Class CodeA32
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number61CM22
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585808597
Pallet Length48.000 in
Pallet Width40.000 in

Certifications
