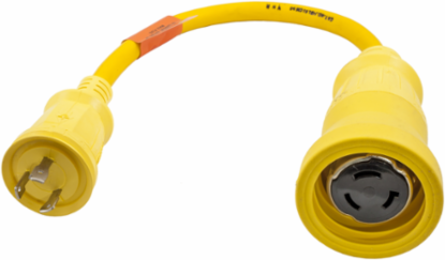

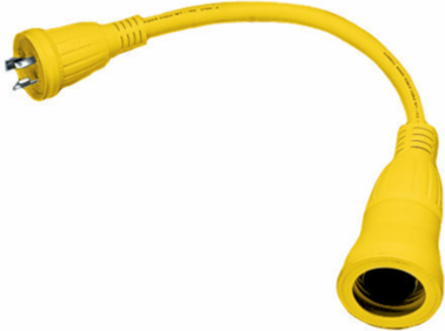

Hubbell Wiring Device-Kellems HBL61CM56 Marine Adapter 30A Female to 50A Locking Male, Corrosion Resistant
- MPN: HBL61CM56
- UPC: 783585808635
- PPN: HBL-HBL61CM56
- UNSPSC: 39121710
CAD
$681.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Adapter, Marine, Molded, Straight Blade, 30A 125V 2-Pole 3-Wire Grounding Female to 50A 125V, 2-Pole 3-Wire Grounding Locking Male
Features
- Marine
- Molded
- Straight Blade
- Yellow
- Corrosion Resistant
Specifications
Key Specifications
- Country of Origin
- United States
- Standards - RoHS Compliance Status
- CM
- Application
- Straight Adapter
- Number of Pins
- Male- 30A 125V Twist-Lock®
- Receptacle
- Female- 50A 125V Twist-Lock®
- Voltage Rating
- 125 VAC
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- Class Code
- A32
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 61CM56M
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.300 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
- NAICS Code
- 335999B100
Width10.300 in
Amperage Rating50 A
ColorYellow
Operating TemperatureMax Continuous- 75 Degrees C, Minimum- -40 Without Impact
Special FeaturesCorrosion Resistant
Wattage6250
Number Of PinsMale- 30A 125V Twist-Lock®
Description - InvoiceMARINE ADAPT, STR, YL, 50A L to 30A SB
Harmonization Code8544429090
MSDS FlagNo
Sub Class CodeA32A320
Receptacle TypeFemale- 50A 125V Twist-Lock®
BOX SIZE5.000x13.200x10.300 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585808635
Case Weight3.300 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
