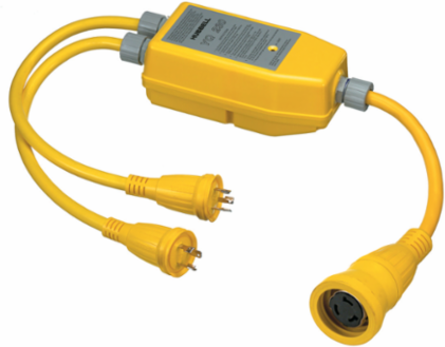

Hubbell Wiring Device-Kellems YQ230 Marine Grade 2-30A to 1-50A Adapter, 30 A, 125/250V, 3-Wire Grounding
- MPN: YQ230
- UPC: 783585831305
- PPN: HBL-YQ230
- UNSPSC: 39121406
CAD
$2939.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Adapter, 2-30A TO 1-50A 125/250V
Features
- Sealing grommets keep moisture out
- UV resistant high-impact housing
- Cord clamps prevent strain on terminals
- Senses Correct Wiring
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 15.600 in
- Amperage Rating
- 30 A
- Color
- Yellow
- NEMA Rating
- 2) L5-30P to 50A Non-NEMA
- Number of Wires
- 3-Wire Grounding
- Special Features
- Senses Correct Wiring
- Wattage
- 7500
- Engineering Drawing 1 Display Text
- YQ230 AutoCAD Drawing
- Connectivity
- Plug Together
- Nema Rating
- 2) L5-30P to 50A Non-NEMA
- Number Of Wires
- 3-Wire Grounding
- Description - Invoice
- MARINE ADAP, 2-30A TO 1-50A 125/250V
- Harmonization Code
- 8537109170
- MSDS Flag
- No
- Material - Mounting Hardware
- Plug Together
- Material
- Thermoplastic
- BOX SIZE
- 5.400x15.500x15.600 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585831305
- Case Weight
- 9.600 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Standards - RoHS Compliance StatusCM
ApplicationMarine Grade
Environmental ConditionsIndoor/Outdoor
Number of Poles2-Pole
PhaseSingle Phase
Voltage Rating125/250 VAC
Wire Size#10 AWG
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Display SizeStandard Sized Product
Number Of Poles2-Pole
Class CodeA32
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA32A320
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.600 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
NAICS Code335999B100
Certifications
- EU RoHS Indicator
- No
