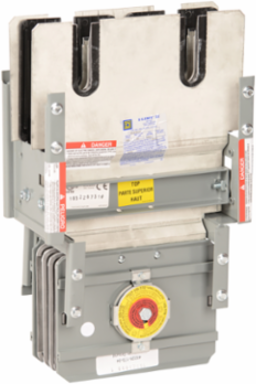

Square D AF2316G12S I-Line Busway Adaptor, 1600A, Aluminum, Indoor, 3-Wire, 12 Inch Length
- MPN: AF2316G12S
- UPC: 785901016700
- PPN: SCH-AF2316G12S
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AF2316G12S I-Line Busway Adaptor from Schneider Electric is a robust solution designed for effective power distribution in indoor environments. With a capacity of 1600A and a 3-wire configuration, this aluminum adaptor seamlessly integrates into existing busway systems to enhance electrical distribution efficiency. Measuring 12 inches in length, it provides the necessary adaptability for connecting various components within your power infrastructure, ensuring reliable performance and ease of installation in commercial or industrial applications.
