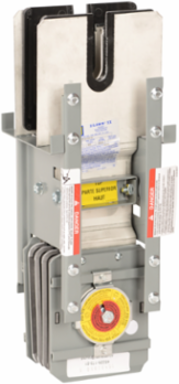

Square D AF2516G12S I-Line Busway Adaptor, 1600A, Aluminum, 4-Wire, Indoor, 12 Inch Length
- MPN: AF2516G12S
- UPC: 785901016823
- PPN: SCH-AF2516G12S
- UNSPSC: 39131701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric AF2516G12S I-Line Busway Adaptor is a robust solution designed for efficient power distribution in indoor environments. Rated at 1600A, this aluminum adaptor supports a 4-wire system, ensuring reliable connectivity and performance in various commercial applications. With its 12-inch length, it seamlessly integrates into existing busway systems, facilitating flexibility and adaptability in power management setups. This component is essential for enhancing electrical infrastructure, making it a vital choice for any large-scale electrical installation.
Features
- Flexible design for diverse commercial and industrial applications.
- Quick and easy installation, reducing labor and downtime.
- High electrical efficiency for reliable power distribution.
- Wide capacity range to meet varying load requirements.
- This product is TAA, and BAA via COTS compliant.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Weight | 13800 g |
| Compliance | |TAA Compliant | BAA Compliant via COTS |
|---|
Complementary Attributes
| Line Rated Current | 1600-1600 A aluminium |
|---|
| Ue Rated Operational Voltage | 600 V AC/DC 50/60 Hz |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL 857CSA C22.2 No 27:1994, IEC 61439-6 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 19 kg CO2 eq., 19.416024563211717 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 116 kg CO2 eq., 116.41057755168066 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1911 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Location | slot |
| Mounting Location | indoor |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | adaptor |
| Range Of Product | I-Line |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 690 kg CO2 eq. |
| Database Version | 2024-01 |
| Length Total | 12 in |
| Customs Code | 8544499000 |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 92 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 26.542145526249065, 27 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 2.1632972143019513, 2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 526 kg CO2 eq., 525.670990018211 |
| Local Publishable Date | 2026-08-26 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Material | aluminium: busbar |
| Phase | 3 phase |
| Product Destination | busbar trunking 1600-1600 A aluminium |
| Protection Type | 50 percent capacity integral ground bus |
| Returnability | Yes |
| Sustainable Packaging | No |
| Wiring Configuration | 4-wire |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 690.2030348736545 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-01-31 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2412020EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2412020EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | I-Line |
| Product Or Component Type | adaptor |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
