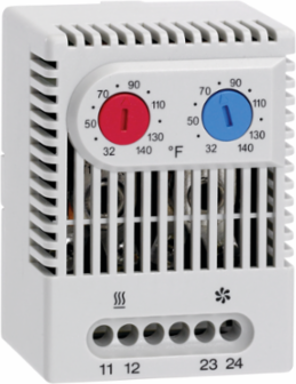

nVent Hoffman ADLTEMP Dual Thermostat 2.64 Inch x 1.97 Inch x 1.81 Inch, Plastic, Light Gray
- MPN: ADLTEMP
- UPC: 783510164515
- PPN: HOF-ADLTEMP
- UNSPSC: 40101604
CAD
$257.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Dual Thermostats independently control equipment heating and cooling systems. This Dual Thermostat, ADLTEMP item measures 2.64x1.97x1.81 inches with a material of Plastic colored Lt Gray.
Features
- Two thermostats; one normally closed (NC), red, and one normally open (NO), blue, in one casing
- Wide adjustable temperature range (32 -140 F)
- Thermostatic bimetallic sensor element
- Connection is a 4-pole terminal for AWG 14 max (2.5 mm sq)
- Mounting clip for 35-mm DIN rail
Documentation & Downloads
Specifications
Additional
| Temperature Range | 32 to 140 F |
|---|---|
| Mounting Type | 35 mm DIN rail |
| Width | 50 mm |
| Depth | 46 mm |
| Material | Plastic |
| Color | Light Gray (RAL 7035) |
| Thermostat Types | Normally Closed (NC) and Normally Open (NO) |
| Connection Type | 4-pole terminal for AWG 14 max (2.5 mm2) |
|---|---|
| Size | 2.64 x 1.97 x 1.81 in |
| Height | 67 mm |
| Weight | 0.22 lb |
| Finish | Smooth Matte |
| Sensor Element | Thermostatic bimetallic |
