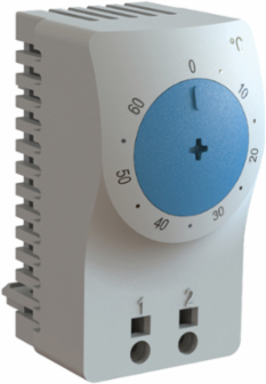

nVent Hoffman ATEMNOC Temperature Control Switch, 2.36x1.30x1.62, Lt Gray, Plastic, Open C
- MPN: ATEMNOC
- UPC: 783510571283
- PPN: HOF-ATEMNOC
- UNSPSC: 40101604
CAD
$137.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Thermostats regulate and monitor air temperature in enclosures containing heat-emitting equipment. This Temperature Control Switch normally open C, ATEMNOC item measures 2.36x1.30x1.62 inches with material of Plastic colored Lt Gray.
Features
- Regulates and monitors air temperature in heat-emitting equipment enclosures
- Bimetal temperature sensor for accurate temperature control
- Normally open contact for reliable switching
- Rated for 15 A resistive and 2 A inductive loads at 120 VAC
- Minimum load sensitivity of 20 mA enables precise control
- Press-fit terminals compatible with AWG 14 wiring for secure connection
- Clip mounting for 35mm DIN rail for easy installation
- Smooth matte light gray plastic housing for durability and aesthetic appeal
- Protection rating IP20 suitable for indoor electrical enclosures
- Certified to cURus, UL94-V0, CSA, and CE standards for safety and quality assurance
Documentation & Downloads
Specifications
Additional
- Maximum Load Switching Capacity
- 15 A resistive / 2 A inductive @ 120 VAC, 10 A resistive / 2 A inductive @ 250 VAC, DC 30 W
- Contact Type
- Normally Open
- Connection
- Press fit terminals for AWG 14 (.04 sq in)
- Size
- 2.36 x 1.30 x 1.62 in (60 x 33 x 41 mm)
- Material
- Plastic
- Protection Rating
- IP20
- Color
- Light Gray
Minimum Load20 mA (all voltages)
Temperature Sensor TypeBimetal
MountingClip for 35mm DIN rail, EN 60715
Weight0.18 lb
FinishSmooth Matte
CertificationcURus, UL94-V0, CSA, CE
