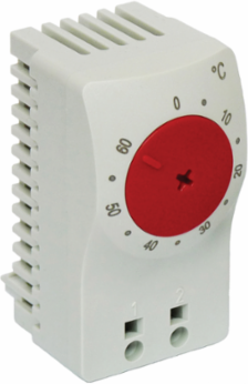

nVent Hoffman ATEMNCF Temperature Control Switch, 2.36x1.30x1.62, Lt Gray, Plastic, Closed F
- MPN: ATEMNCF
- UPC: 783510571313
- PPN: HOF-ATEMNCF
- UNSPSC: 40101604
CAD
$137.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Thermostats regulate and monitor air temperature in enclosures containing heat-emitting equipment. This Temperature Control Switch normally closed F, ATEMNCF item measures 2.36x1.30x1.62 inches with material of Plastic colored Lt Gray.
Features
- Bimetal temperature sensor
- Plastic housing
- Connections consist of press fit terminals for AWG 14 (.04 square inches)
- Clip for 35mm DIN rail, EN 60715
Documentation & Downloads
Specifications
Additional
- Maximum Load AC 120V
- 15 A resistive / 2 A inductive
- Maximum Load DC
- 30 W
- Contact Type
- Normally Closed (NC), quick acting
- Height
- 60 mm
- Depth
- 41 mm
- Material
- Plastic
- Color
- Light Gray
- Mounting
- Clip for 35 mm DIN rail
- Standards Compliance
- cURus, UL94V-0, CSA Certified
Maximum Load AC 250V10 A resistive / 2 A inductive
Minimum Load20 mA
Sensor TypeBimetal temperature sensor
Width33 mm
Weight0.18 kg
FinishSmooth Matte
Protection RatingIP20 (IEC IP20)
Terminal TypePress fit terminals for AWG 14 (.04 sq. in.)
