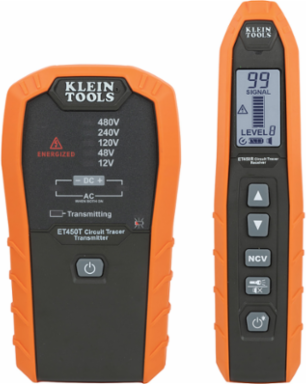

Klein Tools ET450 Advanced Circuit Tracer Kit with LCD Display, Includes Transmitter and Receiver
- MPN: ET450
- UPC: 092644693380
- PPN: KLT-ET450
- UNSPSC: 41113637
CAD
$464.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

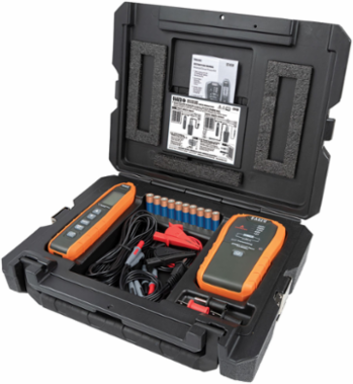

The Klein Tools ET450 Advanced Circuit Tracer Kit is a professional tracer for energized and non-energized breakers, fuses, and wires. When the Transmitter is connected to a circuit, the Receiver's sensitivity can easily be adjusted to detect the transmitted signal on breakers, fuses, and wire through drywall, cement block, and underground. Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case with handle for convenient transportation and storage.
Features

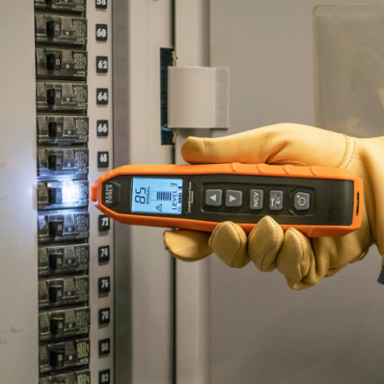

- The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires

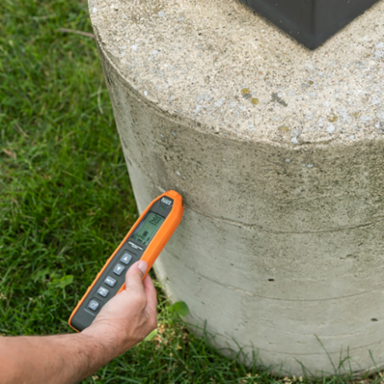

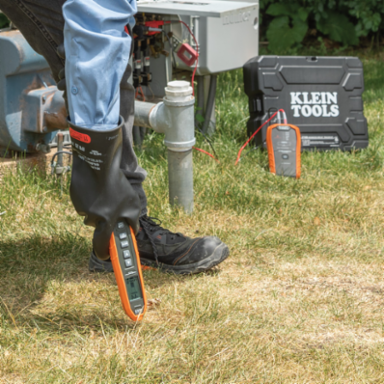

- Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
- Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
- Audible beep and visual indicators on receiver denotes signal strength
- Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized
- Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V

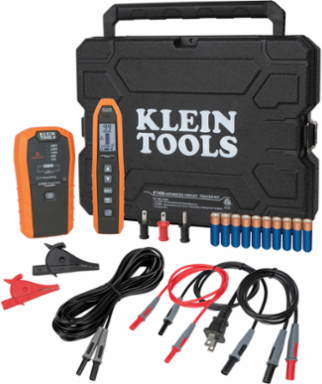

- Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case
- Flashlight and NCV Function on Receiver; Accessories, and Hard Case
Documentation & Downloads
Specifications
Key Specifications
- Included
- Transmitter, Receiver, Blade and Ground Prongs, Alligator Clips, 3' and 20' Lead Adapters, AC Plug Leads, Instructions, All Required Batteries, and Hard Carrying Case
- Standard
- CAT III 600V
- Type
- Circuit Tracer
- Voltage
- External Indicators for 12V, 48V, 120V, 240V, and 480V
- Display
- Receiver - LCD with Backlight
- Frequency
- Transmitter - AC 45Hz to 65Hz; Receiver - 33kHz
- Batteries
- Transmitter - 6 × 1.5V AA Alkaline; Receiver - 4 × 1.5V AA Alkaline
- Pollution Degree
- 2
- Case Included
- Yes
- Overall Width (Inch)
- 12.75
- Overall Height (Inch)
- 4
- Overall Length (Inch)
- 16.12
- Overall Height (cm)
- 10.2
- Overall Length (cm)
- 40.9
- Height
- 4.0000 in
- Depth
- 16.1200 in
ApplicationTrace Energized and Non-Energized Breakers, Fuses, and Wires
MaterialABS and Electronic Components
Drop Protection6' (2 m)
Ingress ProtectionIP42
Tests ContinuityNo
Interchangeable LeadsYes
Integral Lead StorageNo
Control TypeTransmitter and Receiver
Battery LifeUp to 24 hr
Weight (oz)100.5
Lead Length (Feet)20
Overall Width (cm)32.4
Lead Length (m)6.1
Weight (g)2849
Width12.7500 in
Weight6.2800 lbs
