Klein Tools VDV501-851 Scout® Pro 3 Ethernet Cable Tester Kit, 2000 Feet Measurement, Includes Remotes
- MPN: VDV501-851
- UPC: 092644692260
- PPN: KLT-VDV501-851
CAD
$144.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Scout® Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
Features

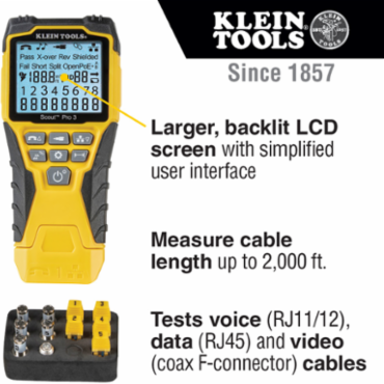

- Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
- Measure cable length up to 2000 feet (610 m)

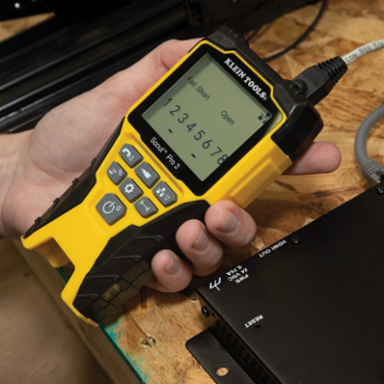

- Test for Open, Short, Miswire or Split-Pair faults

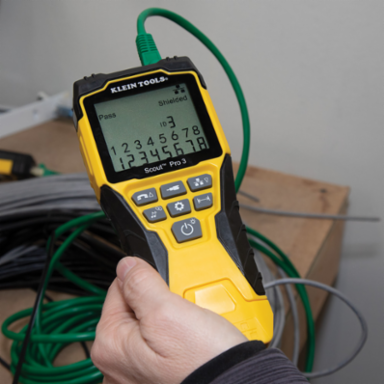

- Backlit LCD screen displays cable length, wiremap, cable ID and test results
- Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

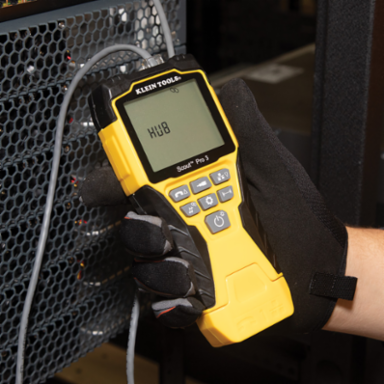

- Hub blink mode to identify port location on a hub or a switch

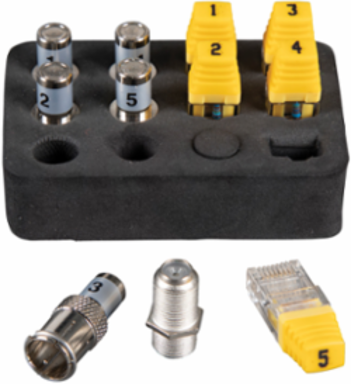

- LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step

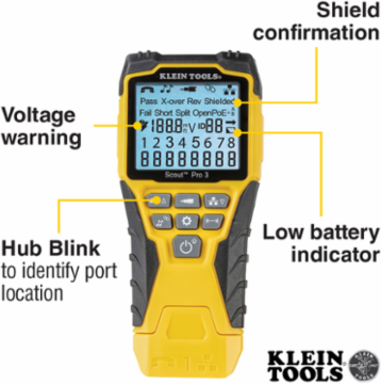

- Includes voltage warning, shield detection, low battery indicator, a self-storing remote, and auto power off feature to conserve battery life (9V included)
- Auto Power-off feature to conserve battery life (9V included)

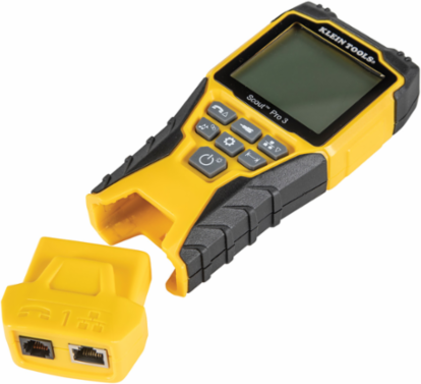

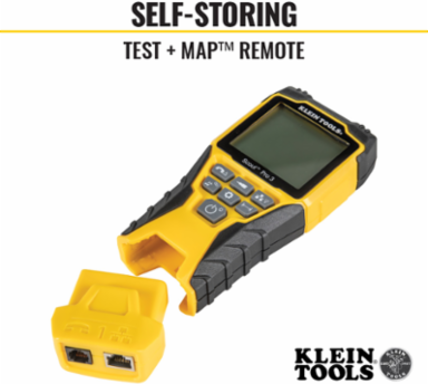

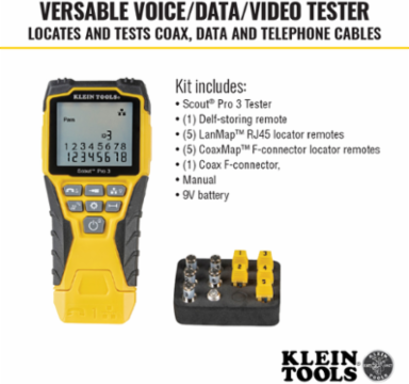

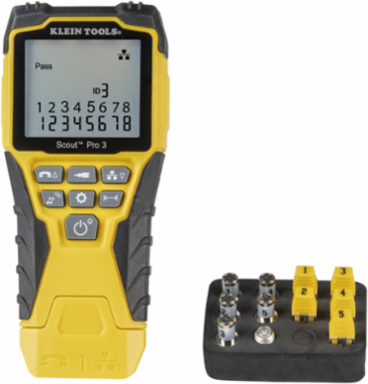

- Kit includes: Scout® Pro 3 Tester, (1) self-storing remote, (5) LanMap™ RJ45 locator remotes, (5) CoaxMap™ F-connector locator remotes, (1) coax F-connector, manual and 9V battery
- Measures Cable Length; Backlit LCD; Hub Blink
Documentation & Downloads
Specifications
Key Specifications
- Supported Remotes
- 18
- Multiple Style Tone Generator
- Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
- Location ID
- (5) RJ45 Data and (5) F-Coax connector Locator Remotes
- Test-n-Map ID Remotes
- (1) Self-Storing
- Display
- Backlit LCD
- Battery Life
- Active - 50 hr
- Application
- Cable Testing
- Included
- Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-connector Locator Remotes, (1) Coax F-adapter, Manual, (1) 9V Battery
- Cable Type
- DATA -, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL - RG59, RG6/6Q
- Weight (oz)
- 19.2
- Overall Height (cm)
- 7.6
- Overall Length (cm)
- 17.8
- Overall Width (Inch)
- 1.25
- Height
- 1.5000 in
- Depth
- 6.9000 in
TypeTwisted Pair, DATA, Voice, LAN, and Coaxial
Connection & Adapter TypesRJ11, RJ12, RJ45, Coax F
Faults DetectedOpen, Short, Miswire
MaterialPlastic and Metal
Drop Protection2 m

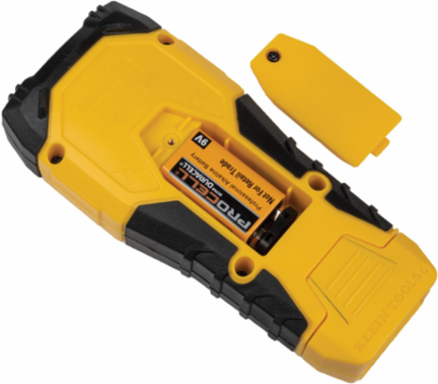

Batteries9V Alkaline
Test & Measure TypesEthernet / Data and Coaxial
StandardCE
AccuracyLength Measurement - +/- 5% (ft) or 5% m
Overall Width (cm)3.2
Weight (g)544
Overall Length (Inch)7
Overall Height (Inch)3
Width3.2000 in
Weight0.8960 lbs
