Klein Tools VDV501-852 Scout Pro 3 Cable Tester Kit, 18 Locator Remotes, Backlit LCD, Measures Cables Up to 2000 Feet
- MPN: VDV501-852
- UPC: 092644583261
- PPN: KLT-VDV501-852
- UNSPSC: 41113740
CAD
$277.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Scout® Pro 3 Tester with Locator Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with 18 location mapping remotes (included). Test for Power over Ethernet (PoE) and measure cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
Features
- Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections

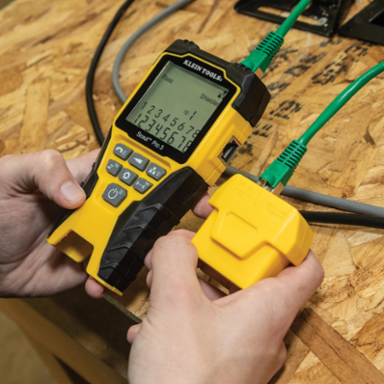

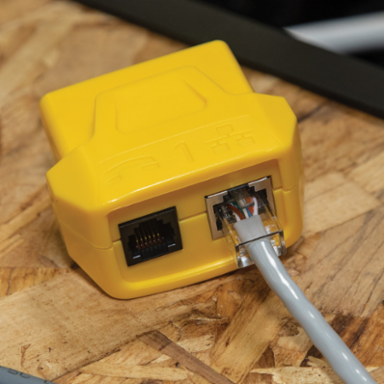

- Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step

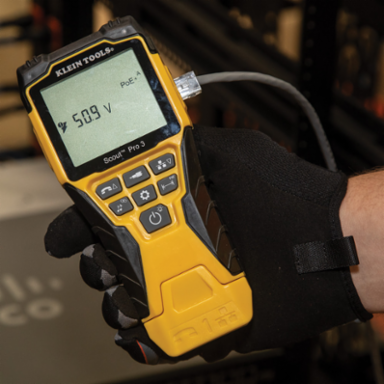

- Power over Ethernet Tester that displays PoE wire and Voltage
- Trace cables, wire pairs and individual conductor wires with a tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

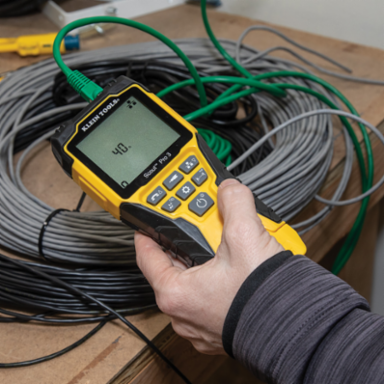

- Measures cable length up to 2,000 feet (610 m)
- Identify multiple cable runs with location-mapping remotes Identify

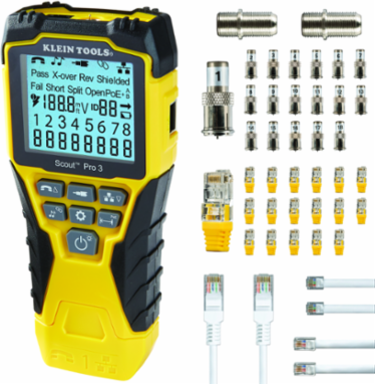

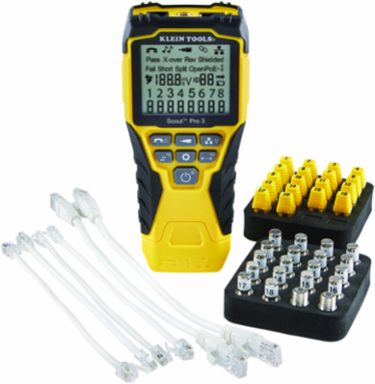

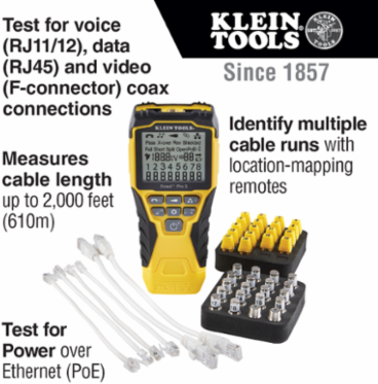

- Kit includes 18 RJ45 LAN locator remotes, 18 F-coax locator remotes, 2 female-to-female coax barrel adaptors, 2 RJ45, RJ11 and RJ12 jumper cables (6-Inch), carrying case and 9V battery
- Detect, identify and test Power over Ethernet (PoE)

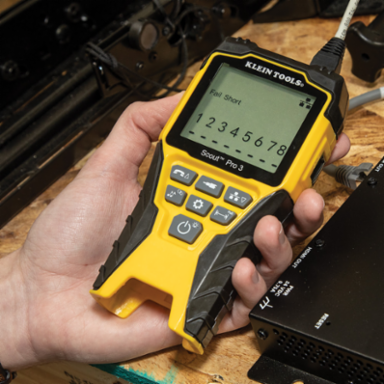

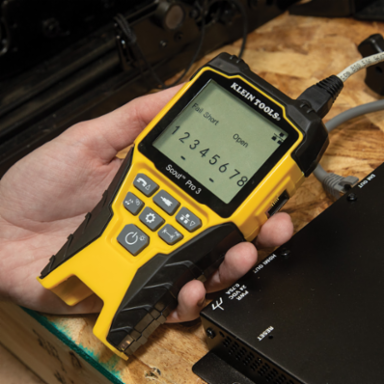

- Backlit LCD screen displays cable length, wiremap, cable ID and test results

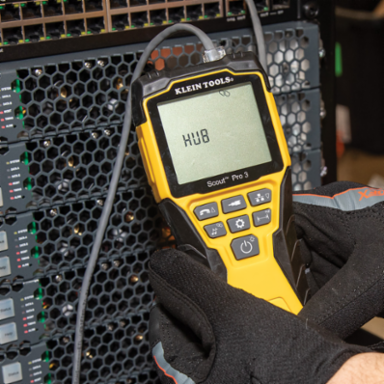

- Hub blink mode to identify port location on a hub or a switch
- Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers

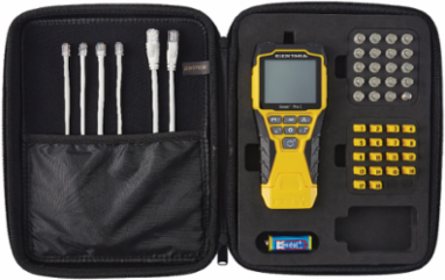

- Includes a 9V battery and convenient carrying case
- Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
Documentation & Downloads
Specifications
Key Specifications
- Material
- Plastic and Metal
- Drop Protection
- 2 m
- Multiple Style Tone Generator
- Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
- Supported Remotes
- 18
- Connection & Adapter Types
- RJ11, RJ12, RJ45, Coax F
- Display
- Backlit LCD
- Cable Type
- DATA -, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL - RG59, RG6/6Q
- Location ID
- (18) RJ45 Data and (18) F-Coax Locator Remotes
- Faults Detected
- Open, Short, Miswire
- Weight (oz)
- 19.2
- Overall Height (cm)
- 8.1
- Overall Length (cm)
- 17.8
- Overall Width (Inch)
- 1.5
- Height
- 1.5000 in
- Depth
- 6.9000 in
Test & Measure TypesEthernet, Data, Coaxial
TypeTwisted Pair, DATA, Voice, LAN, and Coaxial
IncludedTester, Self-storing Test + Map™ Remote (#1), 18 - RJ45 LAN Locator Remotes, 18 - F Coax Locator Remotes, 2 - Coaxial Barrel Adapters (female-to-female), 2 - RJ45 Jumper Cables (6"), 2 - RJ11 Jumper Cables, 2 - RJ12 Jumper Cables, Carrying Case, 1 x 9V Battery
Battery LifeActive - 50 hr
Batteries9V Alkaline
ApplicationCable Testing
Test-n-Map ID Remotes(1) Self-Storing
StandardCE
AccuracyLength Measurement - +/- 5% (ft) or 5% m
Overall Width (cm)3.8
Weight (g)544
Overall Length (Inch)7
Overall Height (Inch)3.2
Width3.2000 in
Weight1.2000 lbs
