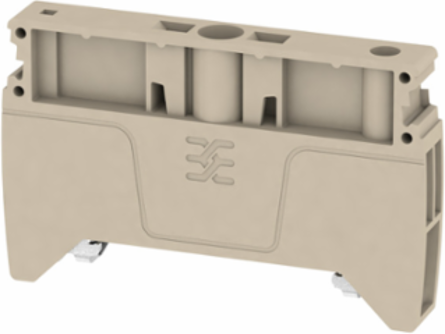

Weidmuller 1991920000 End Bracket A-Series 8 mm Width, 2.283 Inch Height, WEMID GF 30 Material
Weidmuller 1991920000 End Bracket A-Series 8 mm Width, 2.283 Inch Height, WEMID GF 30 Material
- MPN: 1991920000
- PPN: WDM-1991920000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$1.81/ EA
Description
A-series, End bracket
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 8 mm
- Height
- 58 mm
- Depth
- 36 mm
- Net weight
- 13.32 g
Width (inches)0.315 inch
Height (inches)2.283 inch
Depth (inches)1.417 inch
Additional Technical Data
- Installation advice
- Rail
- Open sides
- closed
- Type of mounting
- when screwed in
Interlockfor screw fixing
Snap-onNo
With snap-in pegsNo
Material Data
- Material
- WEMID GF 30
- UL 94 flammability rating
- V-0
Colourdark beige
Classifications
- ETIM 6.0
- EC001041
- eClass 9.0
- 27-14-11-35
- eClass 10.0
- 27-14-11-35
ETIM 7.0EC001041
eClass 9.127-14-11-35
System Specifications
- Version
- For the terminals
RailTS 35
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
