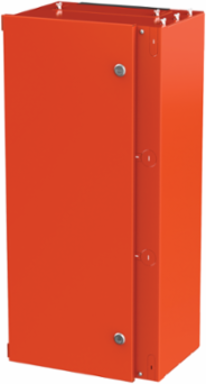

nVent Hoffman AID3215 Large Internal Disconnect Shield 32x15x9.75 Inch, OSHA Safety Orange Steel, 200-600 Amps
- MPN: AID3215
- UPC: 783510358754
- PPN: HOF-AID3215
CAD
$486.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Large Internal Disconnect Shield 32x15x9.75 Inch, OSHA Safety Orange Steel, 200-600 Amps
Features
- Body construction includes flanges and joints to meet UL Type 1 construction requirements
- Quarter-turn slotted latch
- Spring-loaded slam latch with 7mm square insert for automatic latching
- 110-degree door stop to prevent incidental contact
- Gland plate top and bottom for easy wire installation
- Wing nuts for gland plates for tool-less installation
- Ground stud on door and body
- Open back with mounting holes on back flanges for mounting on main enclosure sub-panel
- Knock-outs for variable-depth or cable-operated disconnect switches
- Symmetrically designed to use with left-hand or right-hand disconnect switches
- Hardware kit includes: panel mounting screws, key for spring-loaded slam latch, grommet to cover knockout for variable-depth disconnect switches, and installation instructions
Documentation & Downloads
Specifications
Additional
| Current | 200 A |
|---|---|
| Dimensions | 32 x 14.89 x 9.75 in |
| Material | Mild Steel |
| Color | OSHA Safety Orange |
| Thickness | 1.52 in |
| Latch Type | Quarter-turn slotted latch, spring-loaded slam latch with 7mm square insert |
| Mounting | Open back with mounting holes on back flanges for main enclosure subpanel |
| Ground Stud | On door and body |
| Construction | Includes flanges and joints to meet UL Type 1 construction requirements |
| Amperage Range | 200 - 600 A |
|---|---|
| Weight | 32 lbs |
| Finish | Smooth Gloss |
| NEMA Rating | 1 Indoor, electrical protection |
| Gauge | 16 gauge |
| Door Stop Angle | 110 degrees |
| Gland Plates | Top and bottom with wing nuts for tool-less installation |
| Design | Symmetrical for left-hand or right-hand disconnect switch use |
| Works With | NEMA & IEC |
