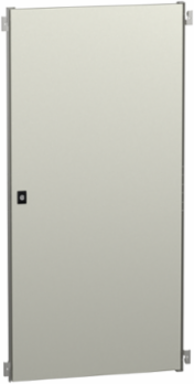

Schneider Electric NSYPIN126 Internal Door 1200 mm x 600 mm Steel RAL 7035, Adjustable Depth

Internal Door 1200 mm x 600 mm Steel RAL 7035, Adjustable Depth
  • MPN: NSYPIN126
  • PPN: SCH-NSYPIN126

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$276.08/ EA

    Description

    This internal door from Schneider Electric is a robust solution designed for a variety of applications in the automation and control, data, and communication sectors. Crafted from durable steel with a sleek RAL 7035 finish, it measures 1200 mm by 600 mm, providing both functionality and an aesthetically pleasing appearance. The adjustable depth feature allows for versatile installation, making it suitable for a range of IT enclosures and racks, while ensuring secure and reliable access to the contained equipment. This door is a vital component for any setup that requires both protection and ease of use.

    Specifications

    Maximum Load
    30 kg/m²
    Width
    nominal 600 mm (23.62 in)
    Surface Finish
    polyester powder
    Number of Locks
    1
    Mounting Location
    step slide, front side
    Door Opening Side
    reversible
    Device Application
    multi-purpose
    Range Compatibility
    Spacial CRN, Spacial S3D, Spacial S3X
    REACH Regulation
    Contains Substances of Very High Concern above threshold
    EU RoHS Directive
    Pro-active compliance; product out of EU RoHS legal scope
    Environmental Disclosure
    ENVPEP100104EN
    Warranty
    18 months
    Range
    Spacial
    Color
    all faces grey RAL 7035
    Heightnominal 1200 mm (47.24 in)
    Materialdoor sheet steel
    Lock Type3 mm double bar
    Adjustmentdepth adjustable, pitch 25 mm
    Door Typeinternal plain
    Net Weight11.1 kg
    Device Composition1 door, 4 fixing brackets, 2 mounting uprights
    ComplianceGreen Premium, REACh, RoHS, Mercury free, China RoHS
    China RoHS RegulationProduct out of China RoHS scope; substance declaration provided
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Accessory / Separate Part Categoryenclosure accessory
    Circularity ProfileN/A
    Country of OriginSpain
